PDMX 0905ZESR-R:M8330
PDMX 0905ZESR-R:M8330

PDMX 0905ZESR-R:M8330

UGC DOR7447927
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 CAD - $22.76 CAD
$22.76 CAD
$22.76 CAD - $22.76 CAD
$22.76 CAD

Vendu en lots de : 10

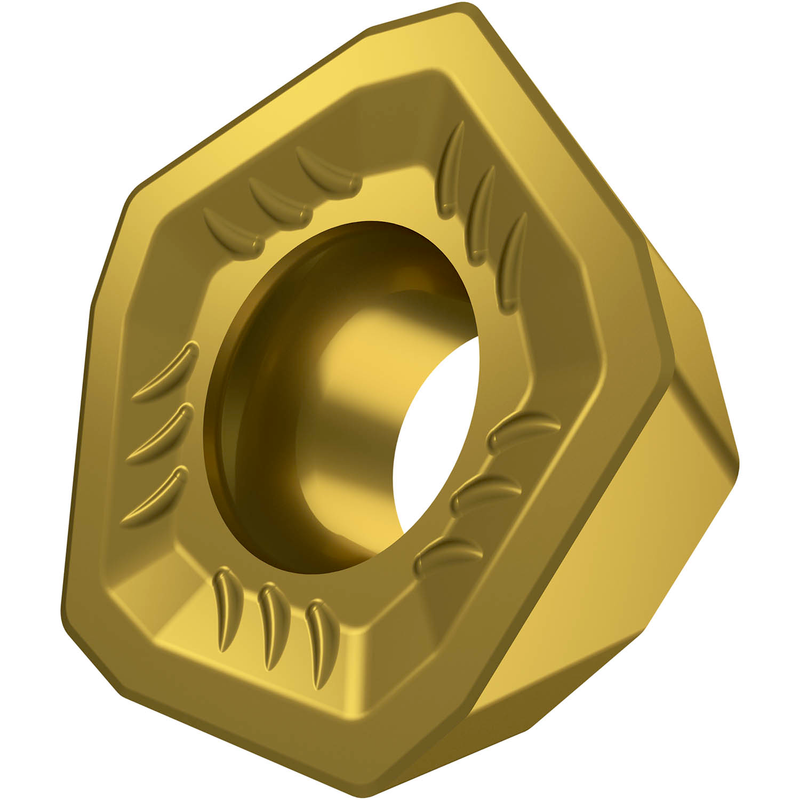

Plaquette de fraisage simple-face PDMX 0905, pentagonale pour une profondeur de coupe maximale de 2 mm, avec rayon de bec ", une précision de positionnement selon la classe de tolérance ISO-M et une géométrie R avec arêtes de coupe arrondies et facette, en carbure de WC-Co à grains fins revêtu PVD M8330 de classe ISO K20-K40 pour l'usinage de la fonte avec des fraises à avance rapide SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDMX 0905ZESR-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number7447927
Product FamilyPDMX 09

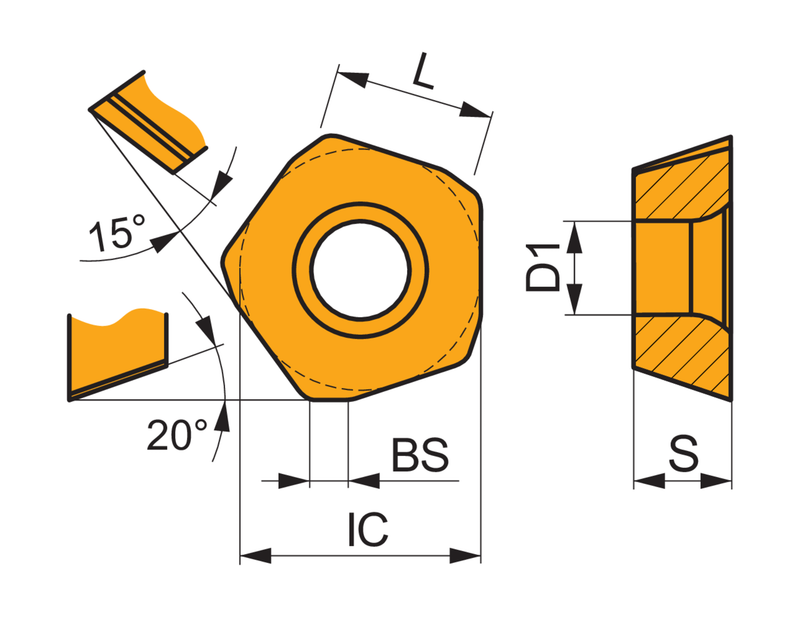

Insert Geometry
Insert DesignPDMX
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7447927
EAN3603603385962
File Type Download
PDMX 0905ZESR-R:M8330 — Line Drawing PDF Download
