PNMQ 1308DNSN:M8330
PNMQ 1308DNSN:M8330

PNMQ 1308DNSN:M8330

UGC DOR7447928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.74 CAD - $56.74 CAD
$56.74 CAD
$56.74 CAD - $56.74 CAD
$56.74 CAD

Vendu en lots de : 5

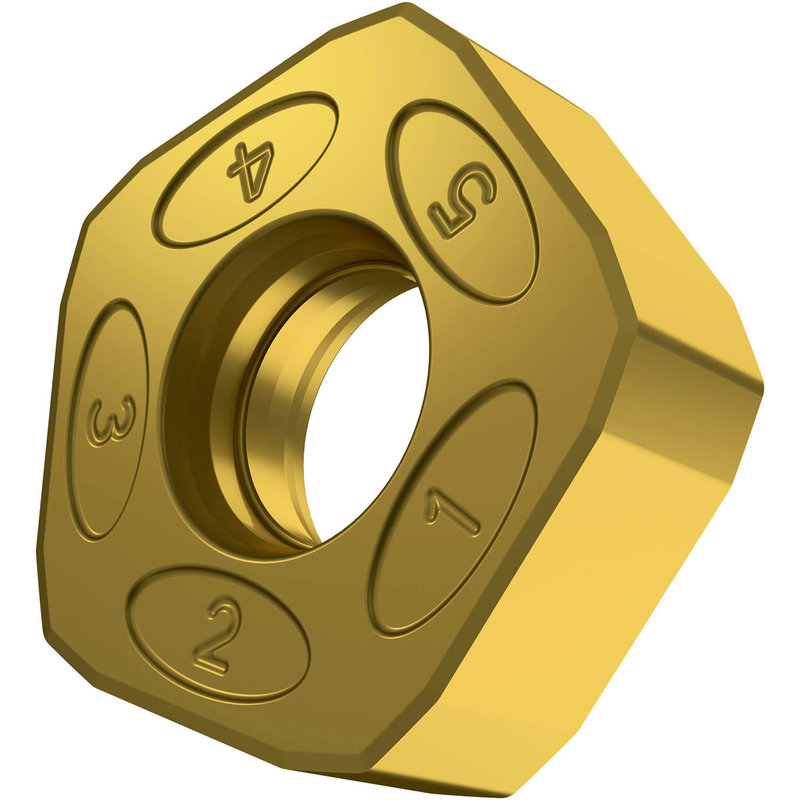

Plaquette de fraisage double-face PNMQ 1308, pentagonale pour une profondeur de coupe maximale de 10 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO M avec arêtes de coupe arrondies et facette, M8330 WC-Co à grain fin revêtu PVD, plage de nuances ISO K20-K40 pour l'usinage de la fonte avec fraises à surfacer SPN13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PNMQ 1308DNSN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7447928
Product FamilyPNMQ 13

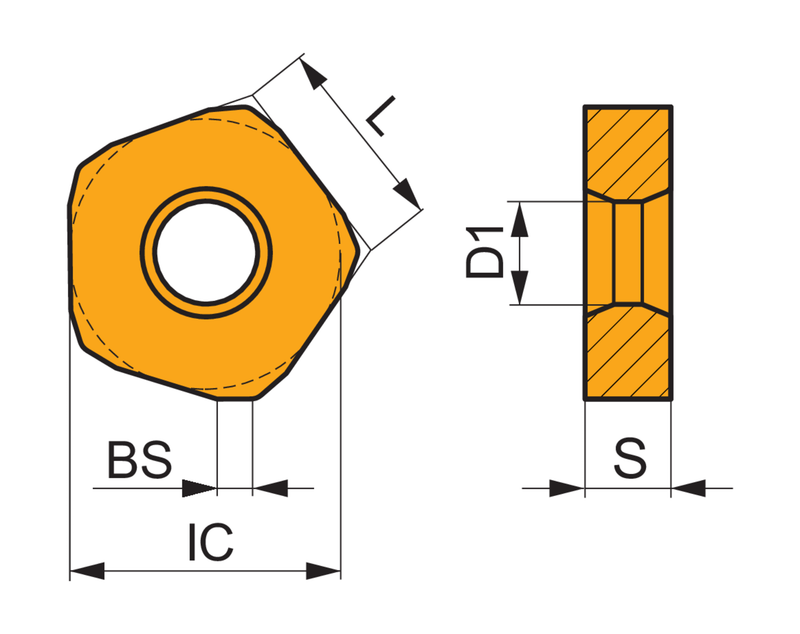

Insert Geometry
Insert DesignPNMQ
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.961"
Inscribed Circle Dia. — mm (IC)24.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7447928
EAN3603603385979
File Type Download
PNMQ 1308DNSN:M8330 — Line Drawing PDF Download
