PPHF 080004-CE1:M8330
PPHF 080004-CE1:M8330

PPHF 080004-CE1:M8330

UGC DOR7447933
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.46 CAD - $49.46 CAD
$49.46 CAD
$49.46 CAD - $49.46 CAD
$49.46 CAD

Vendu en lots de : 10

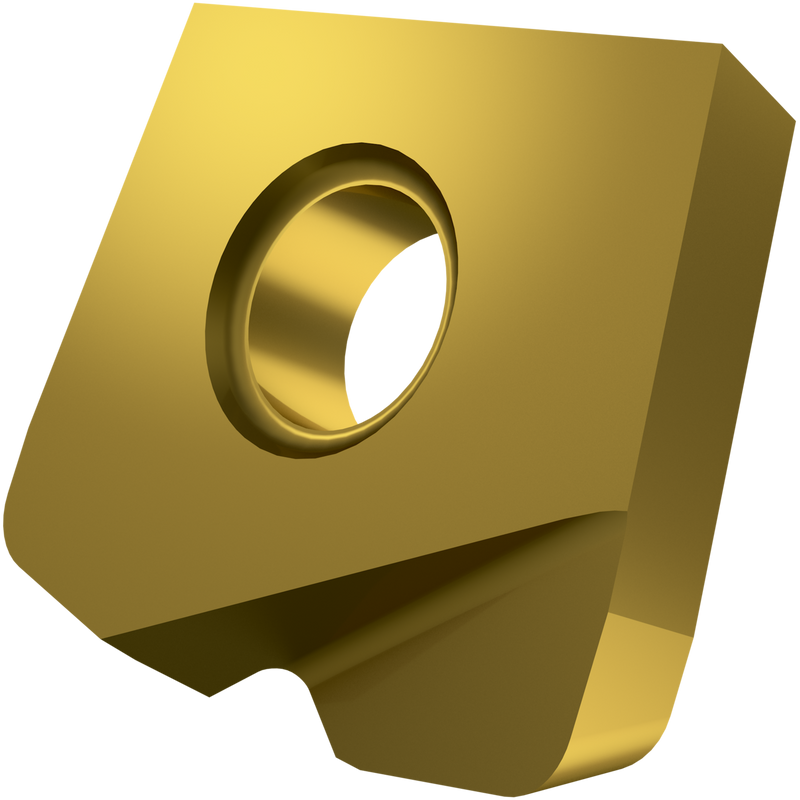

Plaquette de fraisage à copiage et avance élevée d'un diamètre de 0,315" pour une profondeur de coupe maximale de 0,0157", géométrie CE1 et carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHF 080004-CE1:M8330
GradeM8330
Chipbreaker (CBMD)CE1
Product Number7447933
Product FamilyFPPH
Insert Geometry
Insert DesignFPPH
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.4 mm
Depth of Cut Max — in (APMX)0.016"
Depth of Cut Max — mm (APMX)0.4 mm
Tool Information
Reference Numbers
EDP Number7447933
EAN3603603385993
File Type Download

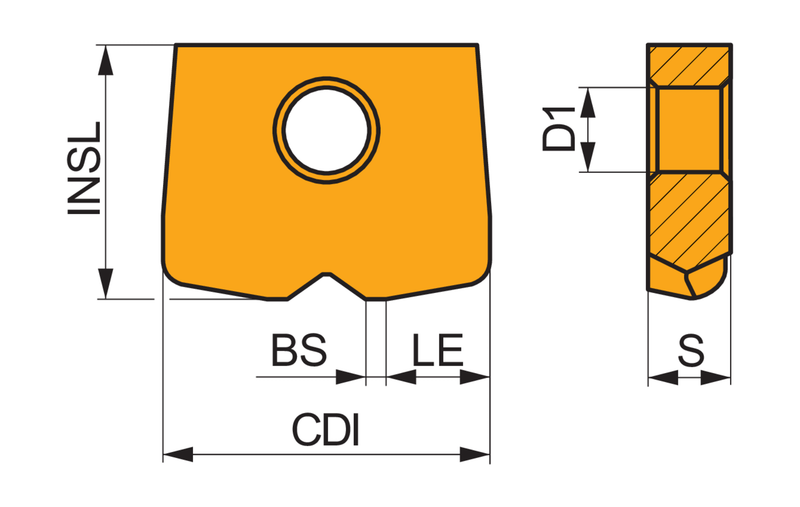

PPHF 080004-CE1:M8330 — Line Drawing PDF Download
