PPHF 120006-CE1:M8330
PPHF 120006-CE1:M8330

PPHF 120006-CE1:M8330

UGC DOR7447935
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.26 CAD - $54.26 CAD
$54.26 CAD
$54.26 CAD - $54.26 CAD
$54.26 CAD

Vendu en lots de : 10

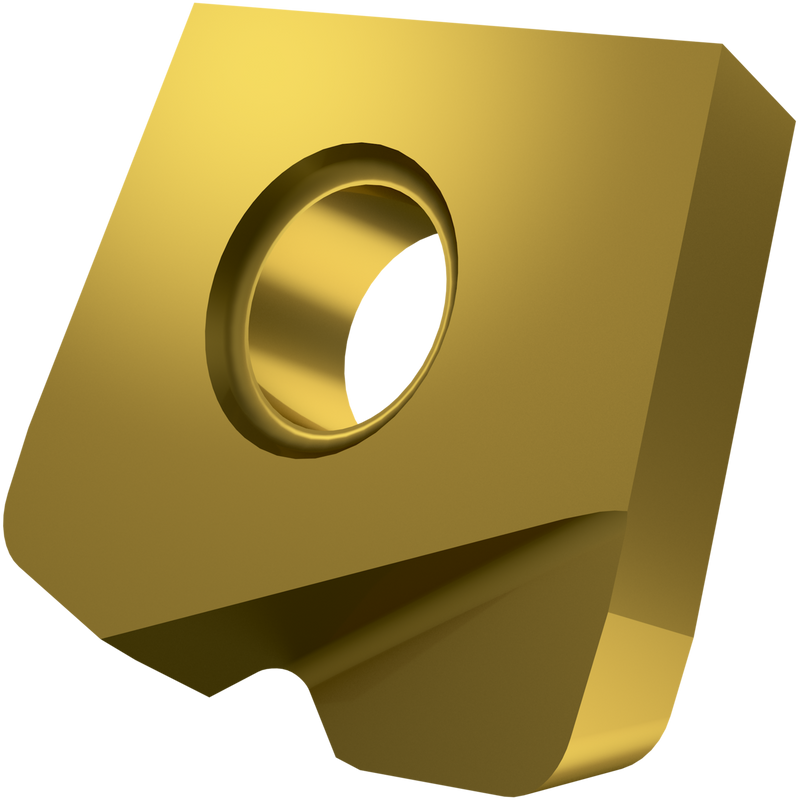

Fraise à copier à grande avance avec un diamètre de 12 mm pour une profondeur de coupe maximale de 0,6 mm, géométrie CE1 et carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de grades ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHF 120006-CE1:M8330
GradeM8330
Chipbreaker (CBMD)CE1
Product Number7447935
Product FamilyHTAP
Insert Geometry
Insert DesignPPFS
Insert Shape Code (SC)P - pentagonale
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.024"
Depth of Cut Max — mm (APMX)0.6 mm
Tool Information
Reference Numbers
EDP Number7447935
EAN3603603386013
File Type Download

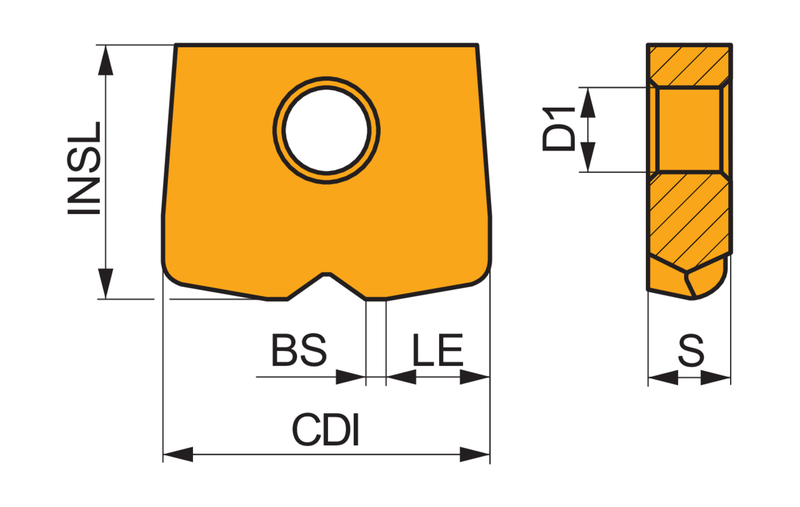

PPHF 120006-CE1:M8330 — Line Drawing PDF Download
