RCMT 1204MOEN-R:M8330
RCMT 1204MOEN-R:M8330

RCMT 1204MOEN-R:M8330

UGC DOR7447950
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.14 CAD - $17.14 CAD
$17.14 CAD
$17.14 CAD - $17.14 CAD
$17.14 CAD

Vendu en lots de : 10

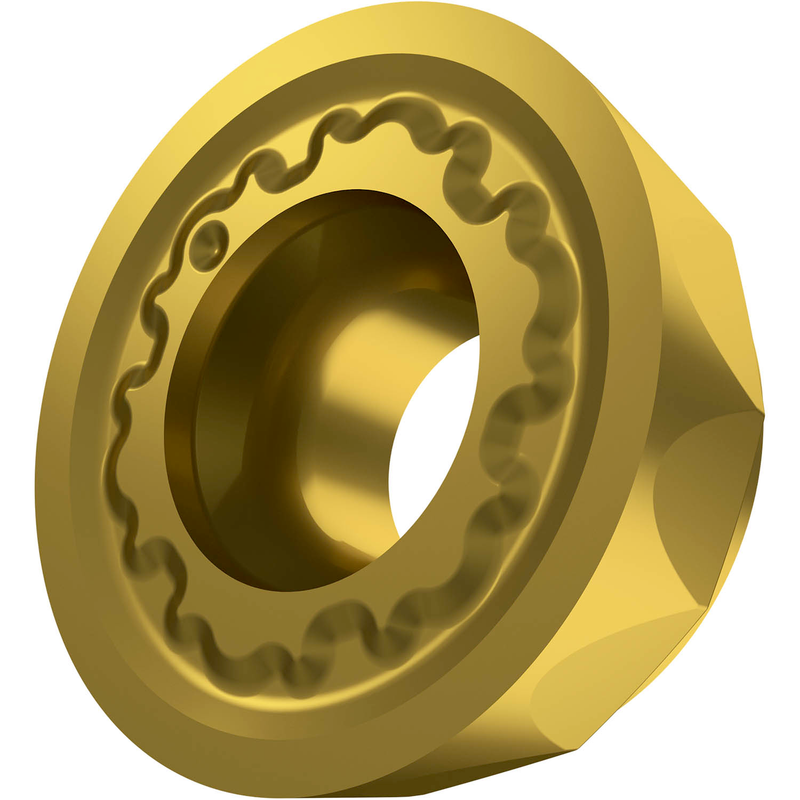

Plaquette de fraisage simple face RCMT 1204 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 6 mm (.2362"), avec rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-M et la géométrie R avec arêtes de coupe arrondies, en carbure M8330 PVD micrograin WC-Co dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec les fraises à surfacer à copier SRC12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOEN-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number7447950
Product FamilyRCMT 12
Insert Geometry
Insert DesignCMTR
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number7447950
EAN3603603386068
File Type Download

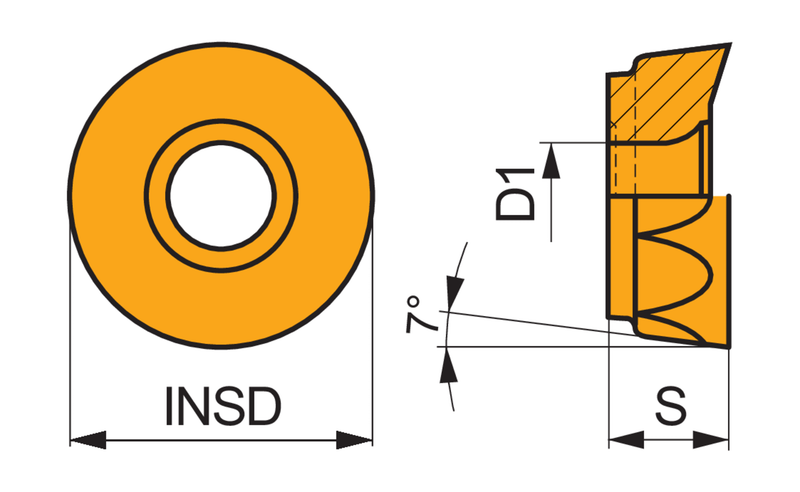

RCMT 1204MOEN-R:M8330 — Line Drawing PDF Download
