RDGT 120500SN-FM:M8330
RDGT 120500SN-FM:M8330

RDGT 120500SN-FM:M8330

UGC DOR7447958
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.29 CAD - $19.29 CAD
$19.29 CAD
$19.29 CAD - $19.29 CAD
$19.29 CAD

Vendu en lots de : 10

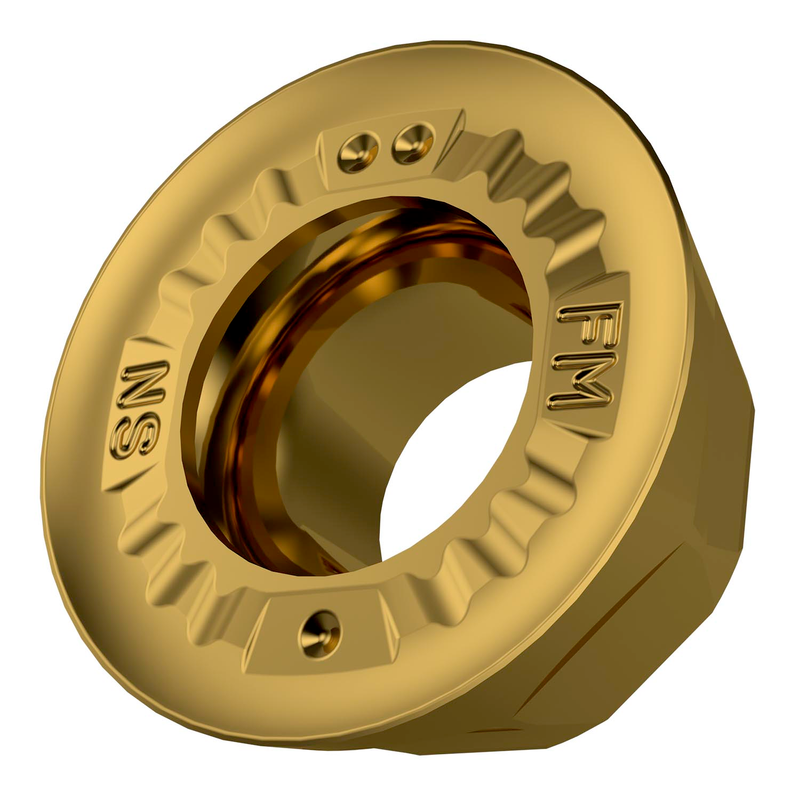

Plaquette de fraisage simple face RDGT 1205 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 6 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-G et une géométrie FM avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDGT 120500SN-FM:M8330
GradeM8330
Chipbreaker (CBMD)FM
Product Number7447958
Product FamilyRDGT 12IM

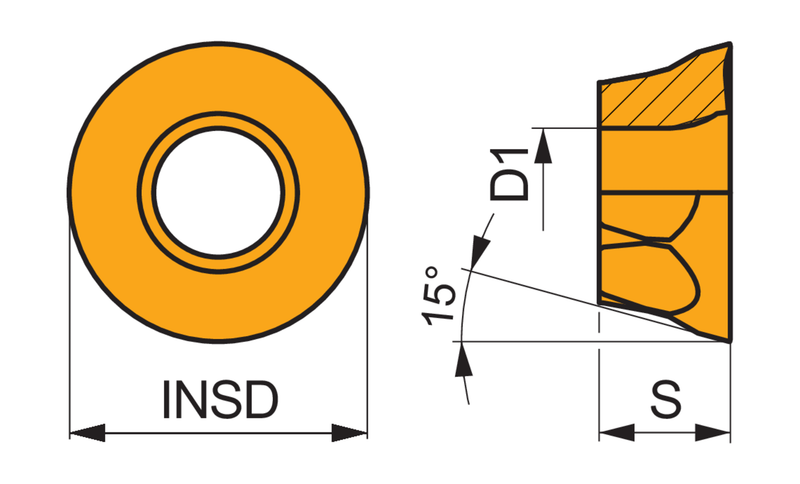

Insert Geometry
Insert DesignGTRD
Insert Shape Code (SC)R - arrondi
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number7447958
EAN3603603386143
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RDGT 120500SN-FM:M8330 — Line Drawing PDF Download
