RPEW 1204MOSN:M8330
RPEW 1204MOSN:M8330

RPEW 1204MOSN:M8330

UGC DOR7447966
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.29 CAD - $19.29 CAD
$19.29 CAD
$19.29 CAD - $19.29 CAD
$19.29 CAD

Vendu en lots de : 10

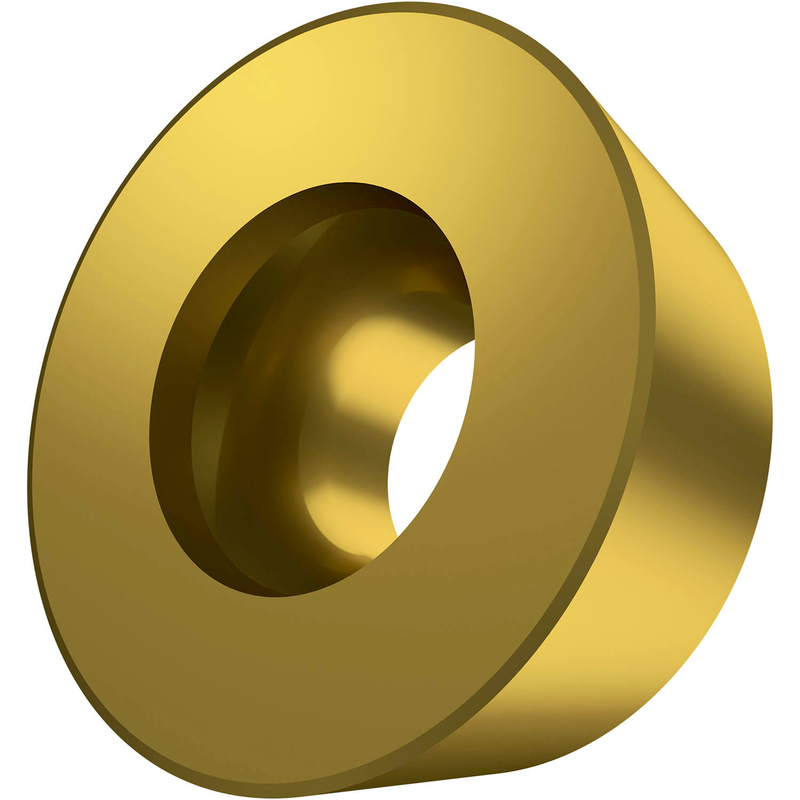

Plaquette de fraisage simple face RPEW 1204 à arête de coupe rectiligne, ronde pour une profondeur de coupe maximale de 3 mm, avec rayon de bec « , précision de positionnement selon la classe de tolérance ISO-E avec arêtes de coupe et facette arrondies, carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPEW 1204MOSN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7447966
Product FamilyRPEW 12
Insert Geometry
Insert DesignEPDM
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7447966
EAN3603603386228
File Type Download

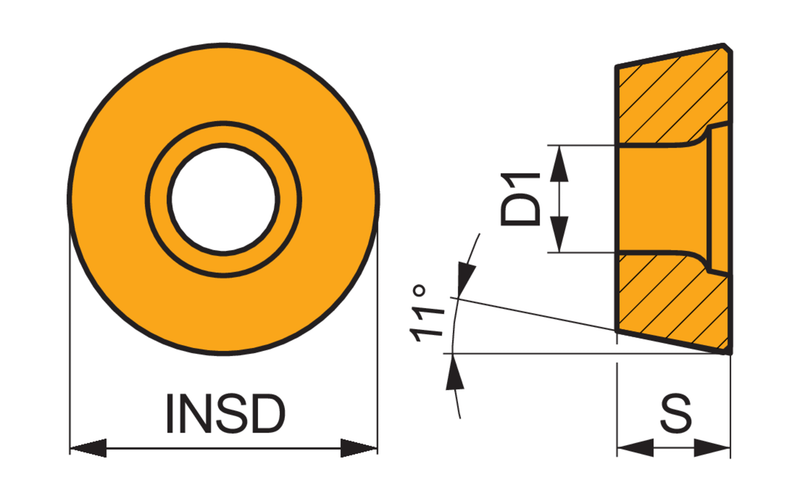

RPEW 1204MOSN:M8330 — Line Drawing PDF Download
