SDEX 322FN-74:M8330
SDEX 322FN-74:M8330

SDEX 322FN-74:M8330

UGC DOR7447973
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.01 CAD - $17.01 CAD
$17.01 CAD
$17.01 CAD - $17.01 CAD
$17.01 CAD

Vendu en lots de : 10

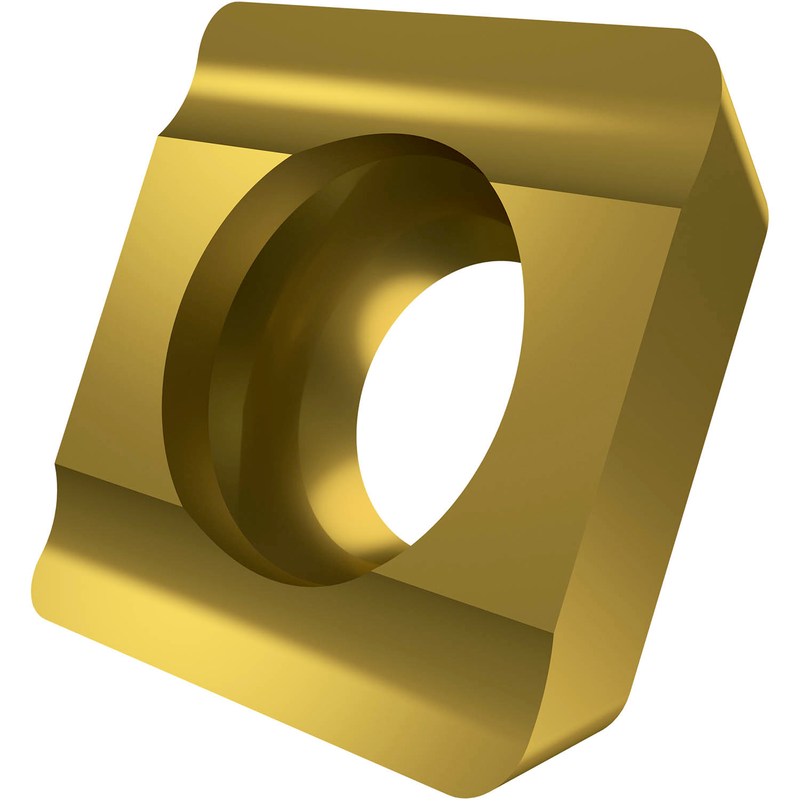

Plaquette de fraisage simple face SDEX 0903, carrée pour une profondeur de coupe maximale de 4,5 mm (0,1772"), avec un rayon de coin de 0,8 mm (0,0315"), une précision d'indexage selon la classe de tolérance ISO-E et une géométrie 74 avec des arêtes de coupe vives, en carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de grades ISO P20-P40 pour l'usinage de l'acier avec des fraises à chanfreiner SSD09

For more information about this product, click here

Identification
Ordering Code (ANSI)SDEX 322FN-74:M8330
Product Name (ISO)SDEX 090308FN-74:M8330
GradeM8330
Chipbreaker (CBMD)74
Product Number7447973
Product FamilySDEX 09

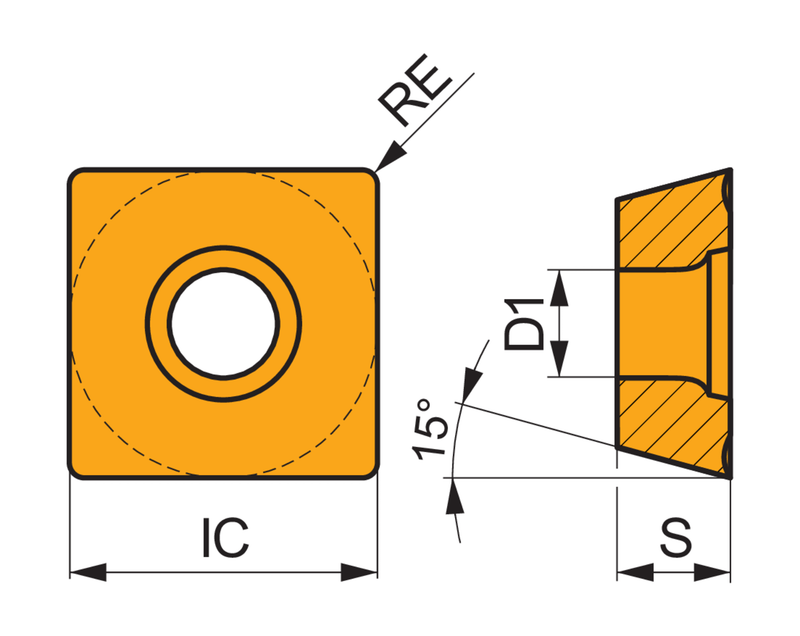

Insert Geometry
Insert DesignSDEX
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7447973
EAN3603603386297
File Type Download
SDEX 322FN-74:M8330 — Line Drawing PDF Download
