SDKT 1205AESN-FM:M8330
SDKT 1205AESN-FM:M8330

SDKT 1205AESN-FM:M8330

UGC DOR7447975
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.86 CAD - $27.86 CAD
$27.86 CAD
$27.86 CAD - $27.86 CAD
$27.86 CAD

Vendu en lots de : 10

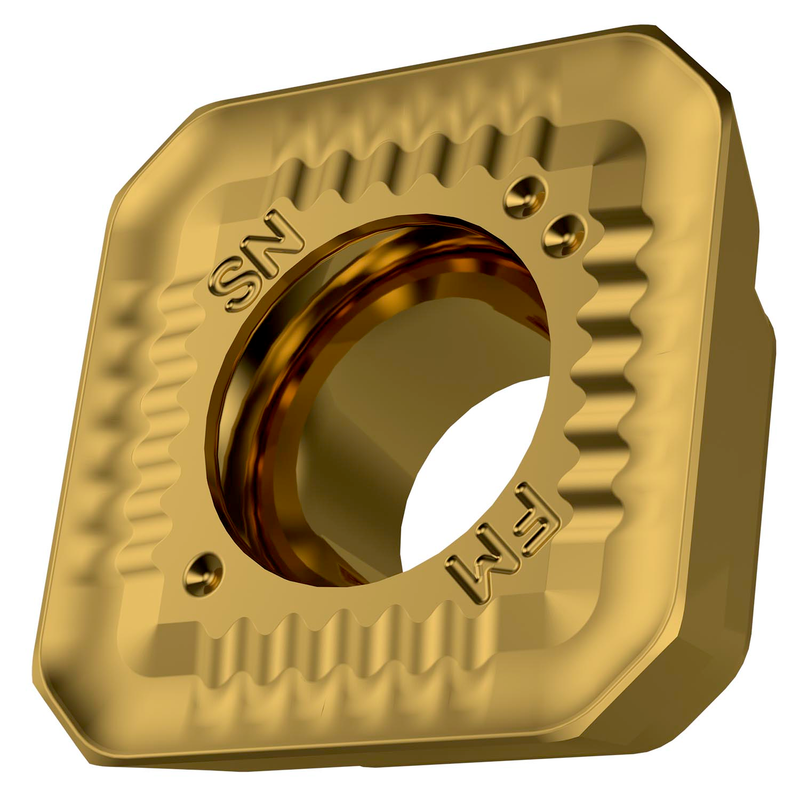

Plaquette de fraisage simple face SDKT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de .3937", avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-K et une géométrie FM avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec des fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDKT 1205AESN-FM:M8330
GradeM8330
Chipbreaker (CBMD)FM
Product Number7447975
Product FamilySDKT 12IM

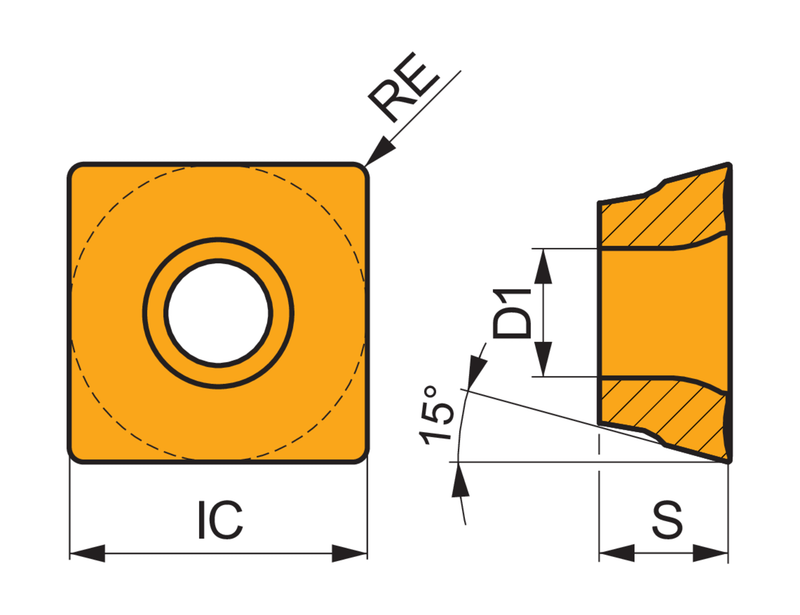

Insert Geometry
Insert DesignSDKT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7447975
EAN3603603386310
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
SDKT 1205AESN-FM:M8330 — Line Drawing PDF Download
