SDMT 120508SN-F:M8330
SDMT 120508SN-F:M8330

SDMT 120508SN-F:M8330

UGC DOR7447981
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Vendu en lots de : 10

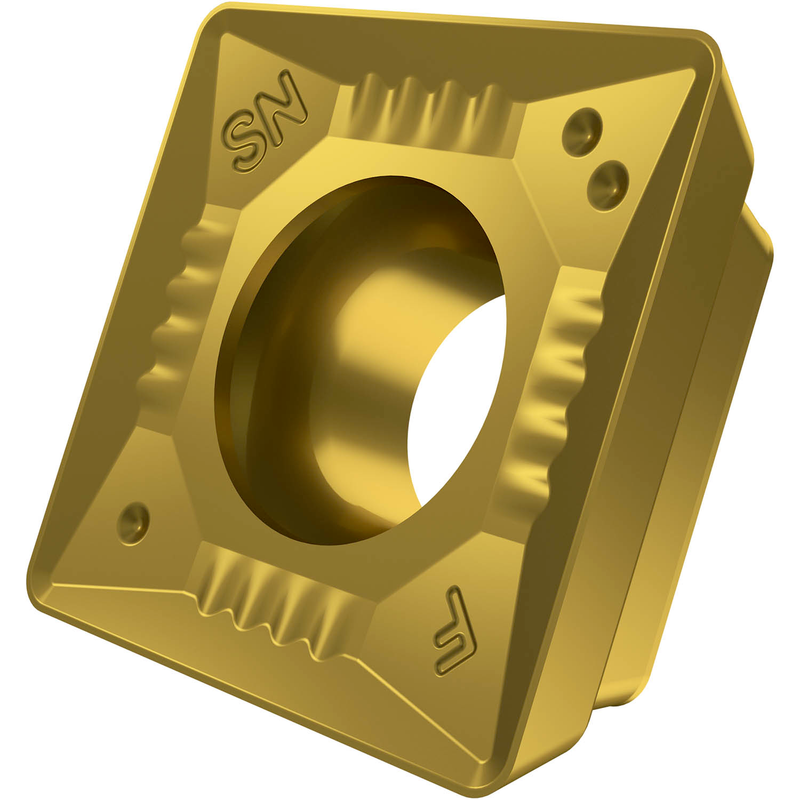

Plaquette de fraisage simple face SDMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm (0,3937"), avec un rayon de coin de 0,8 mm (0,0315"), une précision d'indexage selon la classe de tolérance ISO-M et une géométrie F avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de qualité ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508SN-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number7447981
Product FamilySDMT 12IM

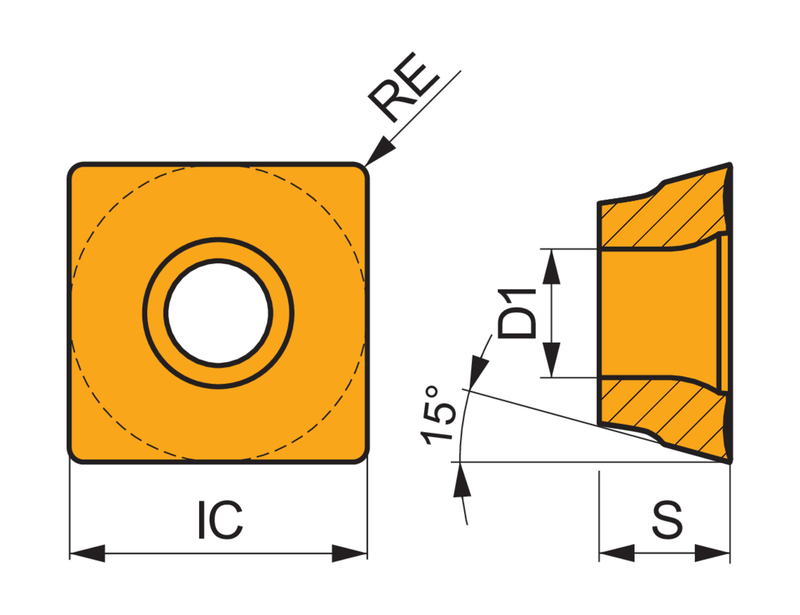

Insert Geometry
Insert DesignTSDM
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7447981
EAN3603603386372
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
SDMT 120508SN-F:M8330 — Line Drawing PDF Download
