SDMT 120508SN-R:M8330
SDMT 120508SN-R:M8330

SDMT 120508SN-R:M8330

UGC DOR7447982
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Vendu en lots de : 10

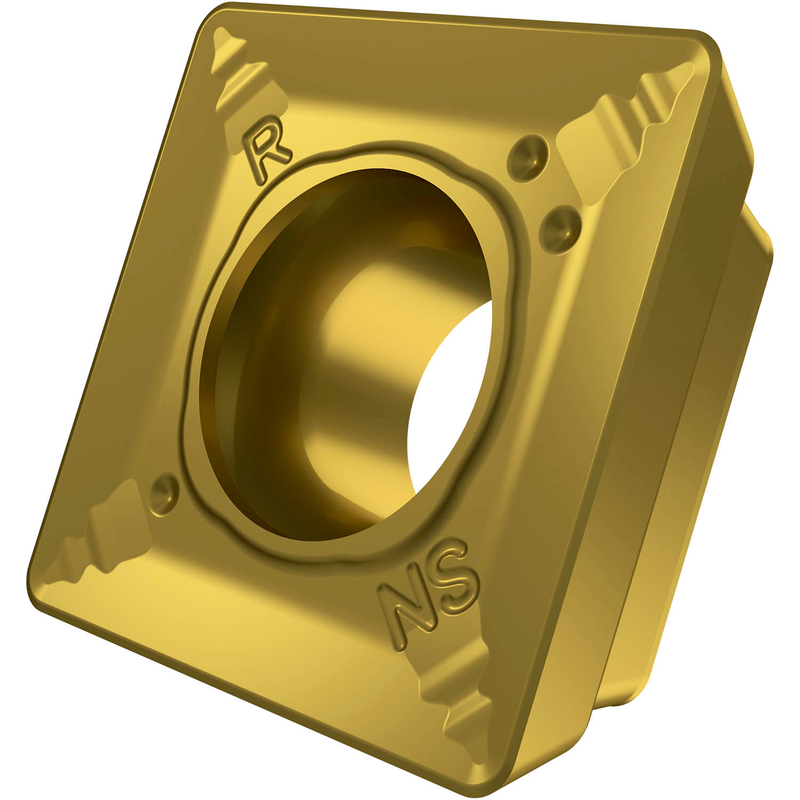

Plaquette de fraisage simple face SDMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm, avec rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508SN-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number7447982
Product FamilySDMT 12IM

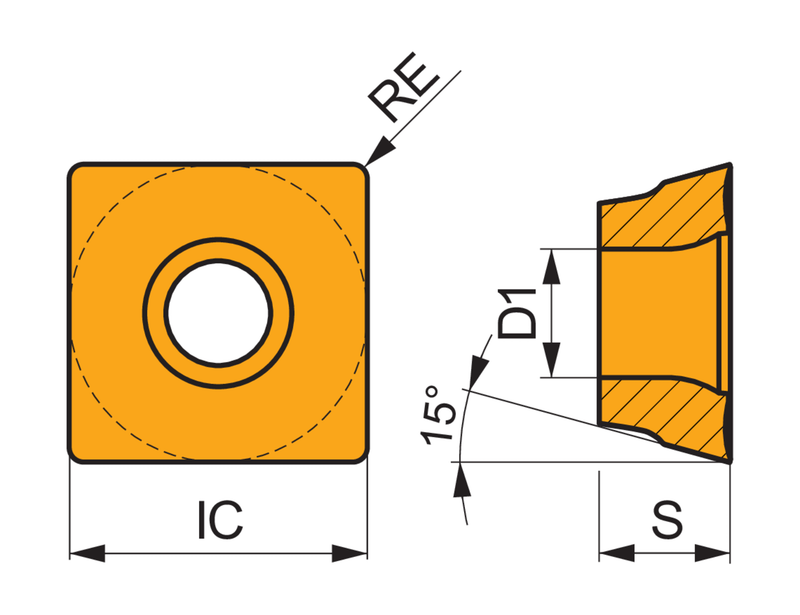

Insert Geometry
Insert DesignTSDM
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7447982
EAN3603603386389
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
SDMT 120508SN-R:M8330 — Line Drawing PDF Download
