SDMX 120508EN-M:M8330
SDMX 120508EN-M:M8330

SDMX 120508EN-M:M8330

UGC DOR7447983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Vendu en lots de : 10

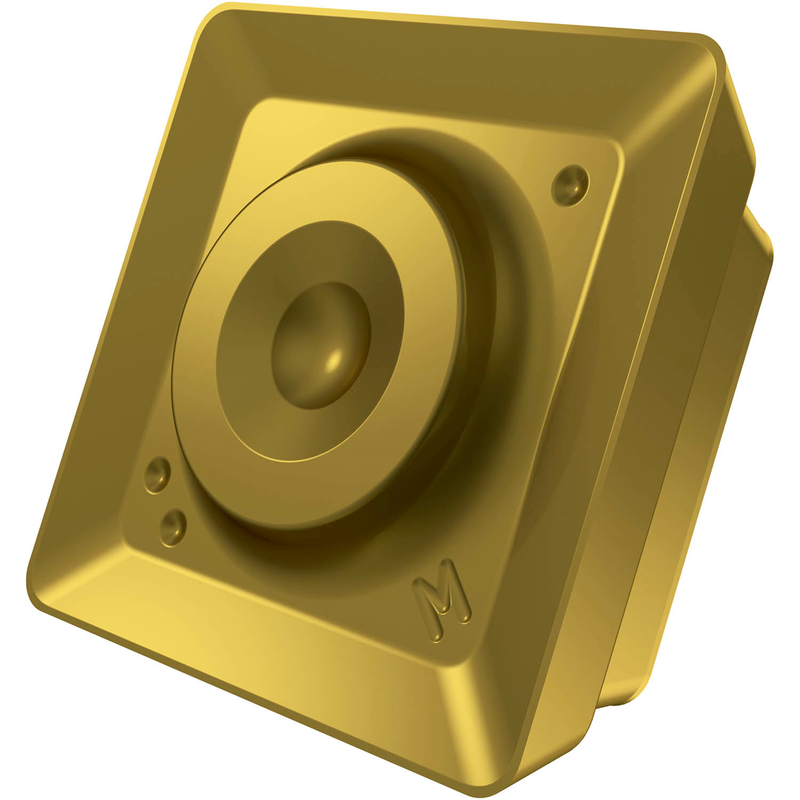

Plaquette de fraisage simple face SDMX 1205, carrée pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement conforme à la classe de tolérance ISO-M et une géométrie M avec des arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 de classe ISO P20-P40 pour l'usinage de l'acier avec des fraises à épaulement à queue allongée J(T)-CSD12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMX 120508EN-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447983
Product FamilySDMX 12

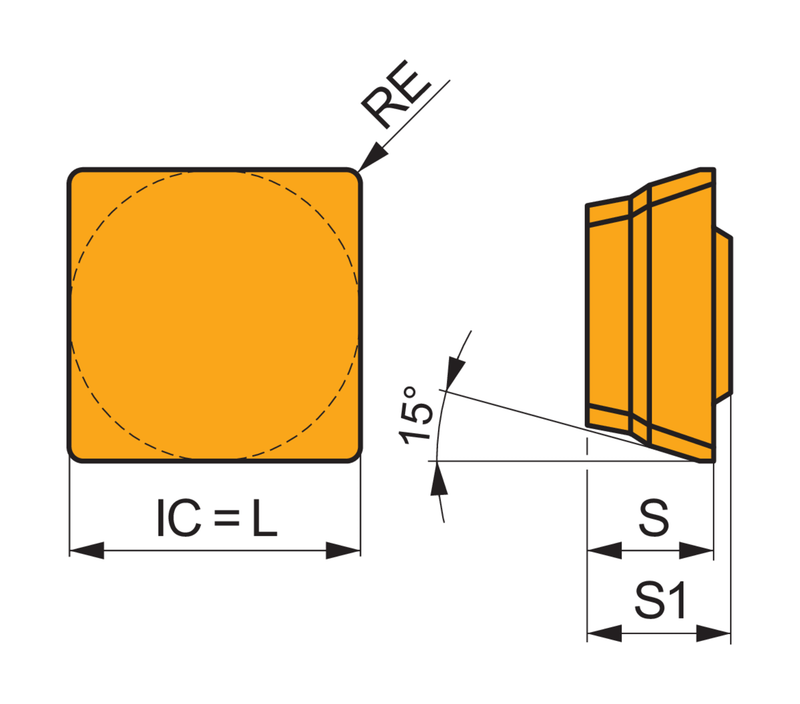

Insert Geometry
Insert DesignSDMX
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7447983
EAN3603603386396
File Type Download
SDMX 120508EN-M:M8330 — Line Drawing PDF Download
