VU 42AFFN:M8330
VU 42AFFN:M8330

VU 42AFFN:M8330

UGC DOR7450962
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.19 CAD - $16.19 CAD
$16.19 CAD
$16.19 CAD - $16.19 CAD
$16.19 CAD

Vendu en lots de : 10

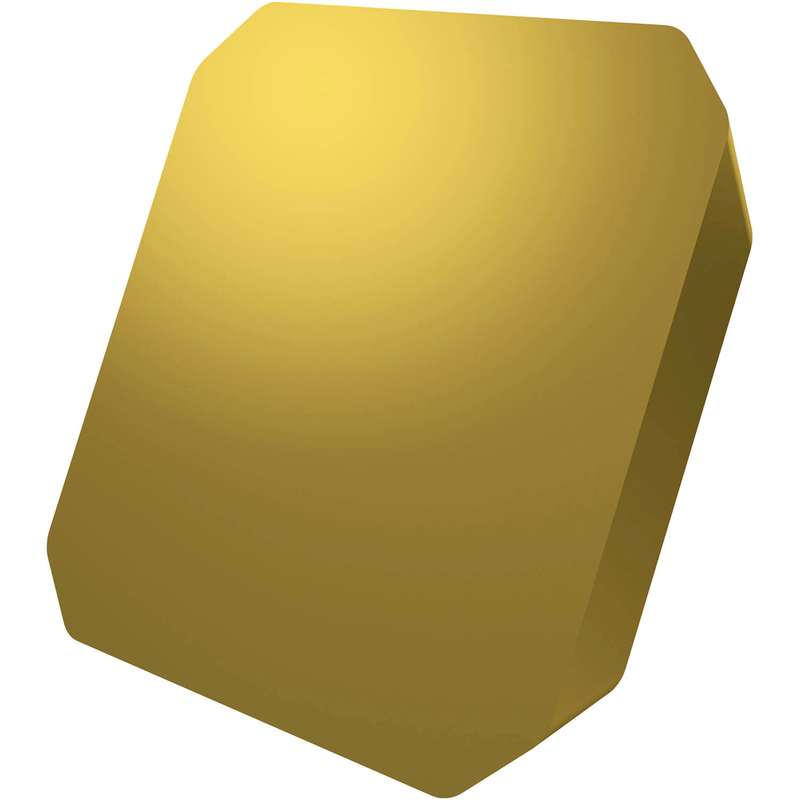

Plaquette de fraisage simple-face SEEN 1203 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de bec, une précision de positionnement selon la classe de tolérance ISO-E avec des arêtes de coupe vives, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 42AFFN:M8330
Product Name (ISO)VU 1203AFFN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7450962
Product FamilyVU

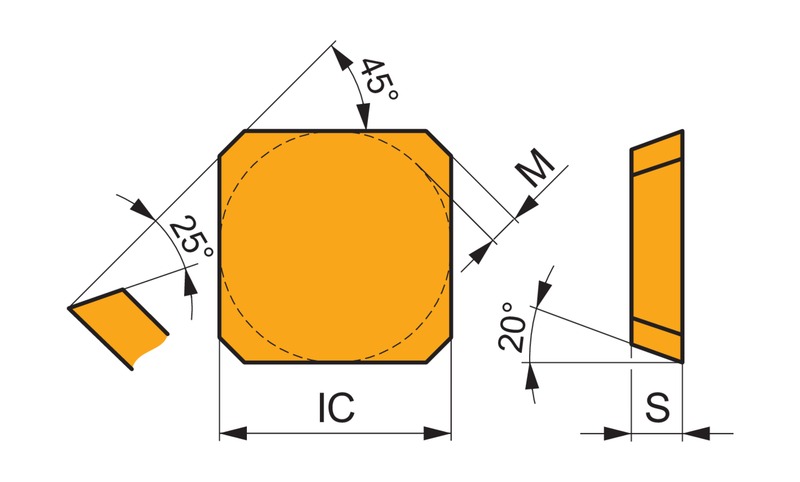

Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7450962
EAN3603603389014
File Type Download
VU 42AFFN:M8330 — Line Drawing PDF Download
