VU 42AFSN:M8330
VU 42AFSN:M8330

VU 42AFSN:M8330

UGC DOR7450963
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.19 CAD - $16.19 CAD
$16.19 CAD
$16.19 CAD - $16.19 CAD
$16.19 CAD

Vendu en lots de : 10

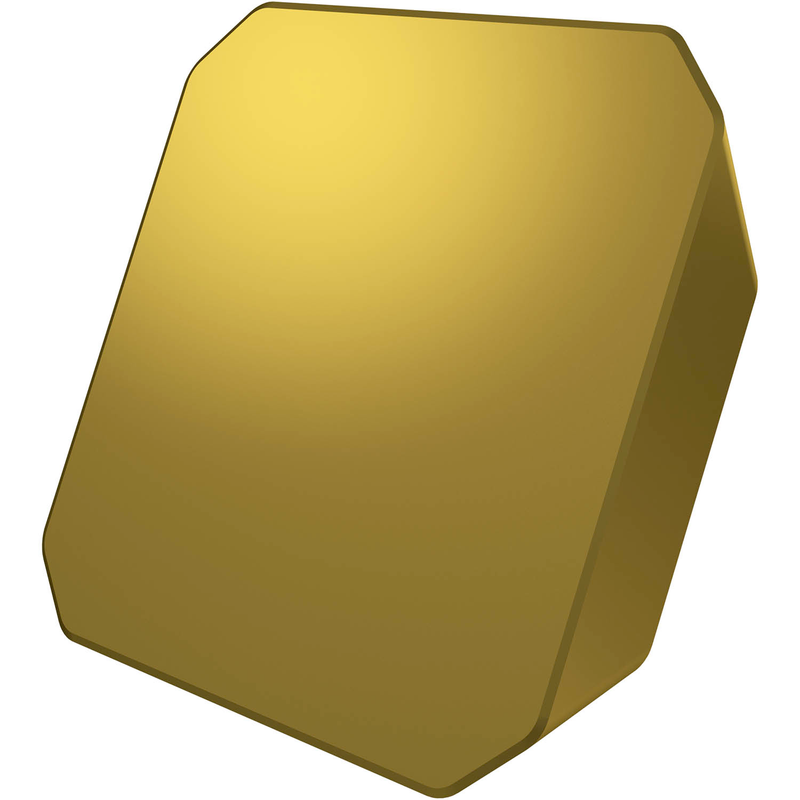

Plaquette de fraisage simple face SEEN 1203 à brise-copeaux plat, de forme carrée pour une profondeur de coupe maximale de 6,5 mm (0,2559"), avec un rayon de coin de 0,4 mm (0,0157"), une précision d'indexage selon la classe de tolérance ISO E avec arêtes de coupe et facettes arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 de nuance ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 42AFSN:M8330
Product Name (ISO)VUES 1203AFSN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7450963
Product FamilyVU

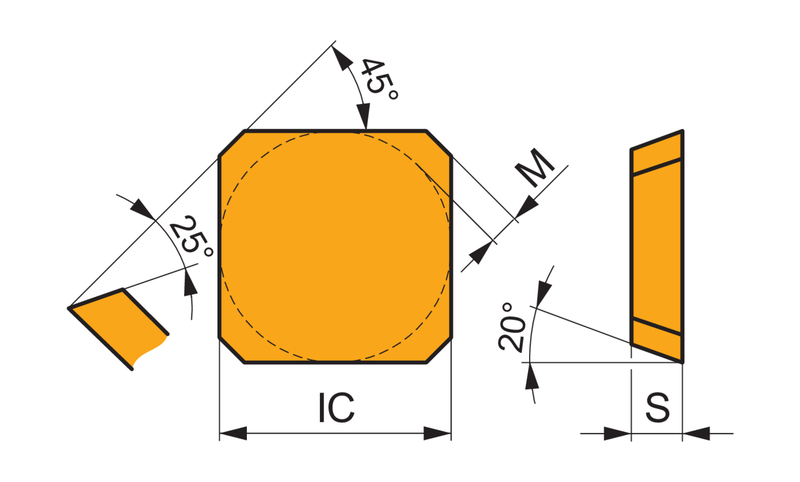

Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7450963
EAN3603603389021
File Type Download
VU 42AFSN:M8330 — Line Drawing PDF Download
