SEER 42AFEN:M8330
SEER 42AFEN:M8330

SEER 42AFEN:M8330

UGC DOR7450967
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.11 CAD - $18.11 CAD
$18.11 CAD
$18.11 CAD - $18.11 CAD
$18.11 CAD

Vendu en lots de : 10

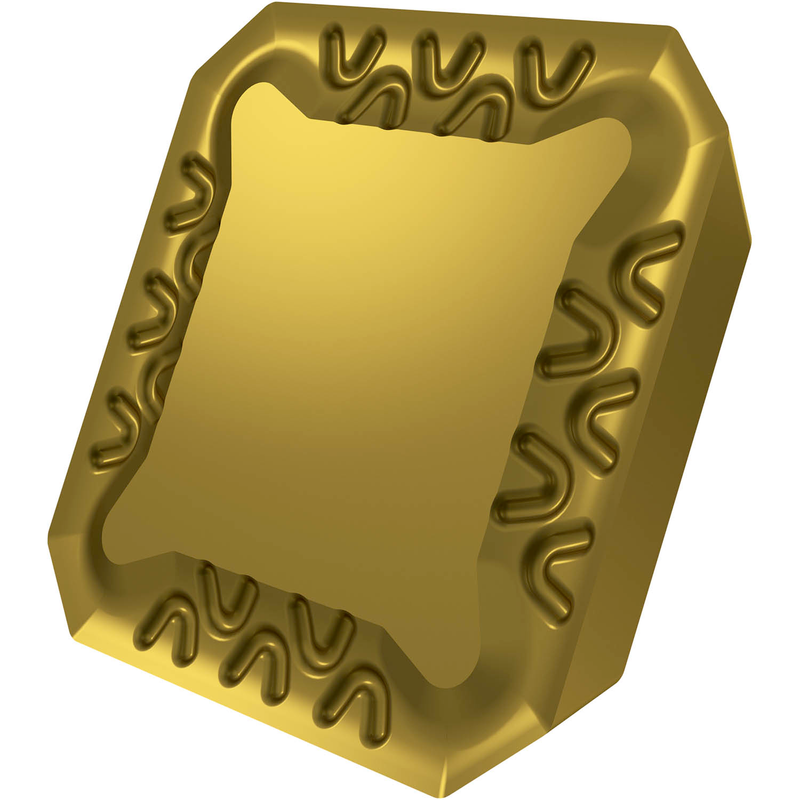

Plaquette de fraisage simple face SEER 1203 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm (0,2559"), avec rayon de coin, une précision d'indexage selon la classe de tolérance ISO-E avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de nuances ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)SEER 42AFEN:M8330
Product Name (ISO)SEER 1203AFEN:M8330
GradeM8330
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number7450967
Product FamilySEER

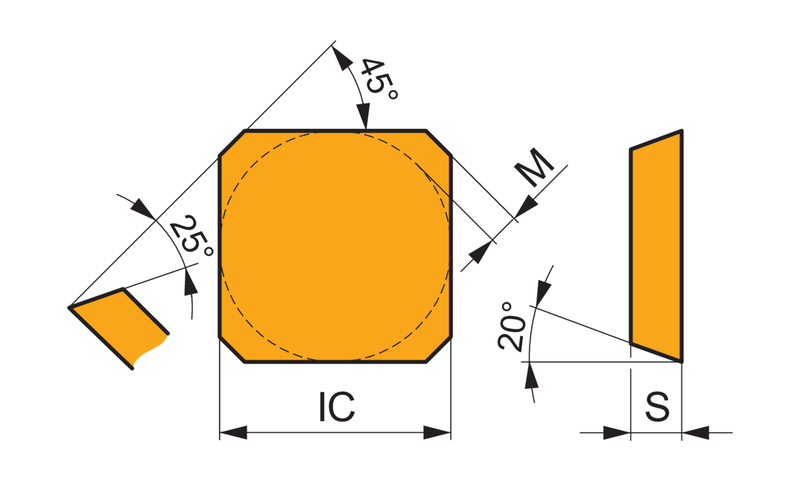

Insert Geometry
Insert DesignVEUR
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7450967
EAN3603603389069
File Type Download
SEER 42AFEN:M8330 — Line Drawing PDF Download
