SEET 1204AFSN:M8330
SEET 1204AFSN:M8330

SEET 1204AFSN:M8330

UGC DOR7451005
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.80 CAD - $28.80 CAD
$28.80 CAD
$28.80 CAD - $28.80 CAD
$28.80 CAD

Vendu en lots de : 10

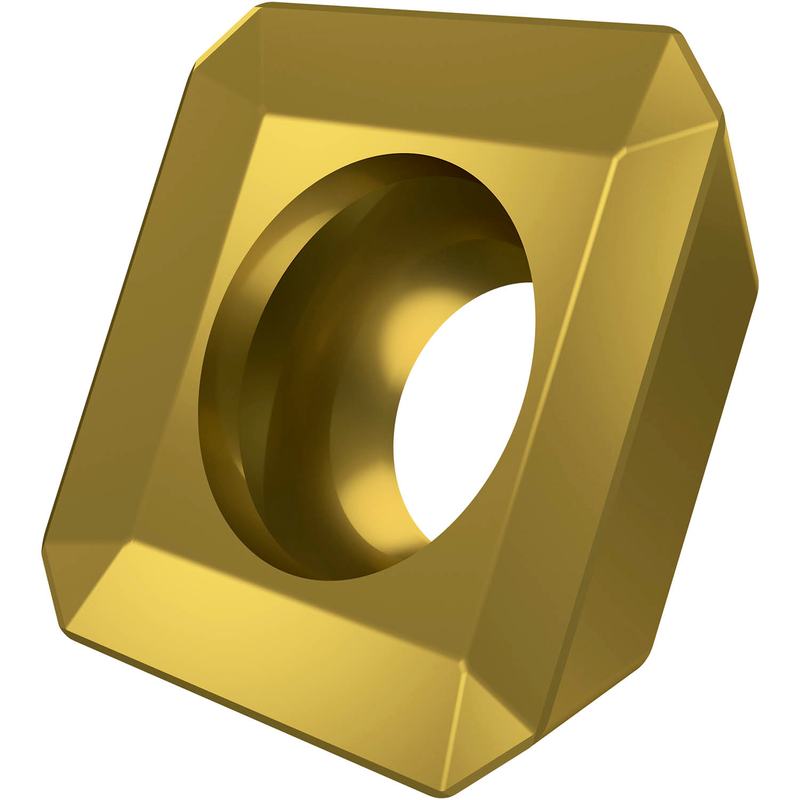

Plaquette de fraisage simple face SEET 1204 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-E avec arêtes de coupe arrondies et facette, en carbure WC-Co à grain fin revêtu PVD M8330 dans la gamme ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 1204AFSN:M8330
GradeM8330
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number7451005
Product FamilySEET 12
Insert Geometry
Insert DesignSEET
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7451005
EAN3603603389144
File Type Download

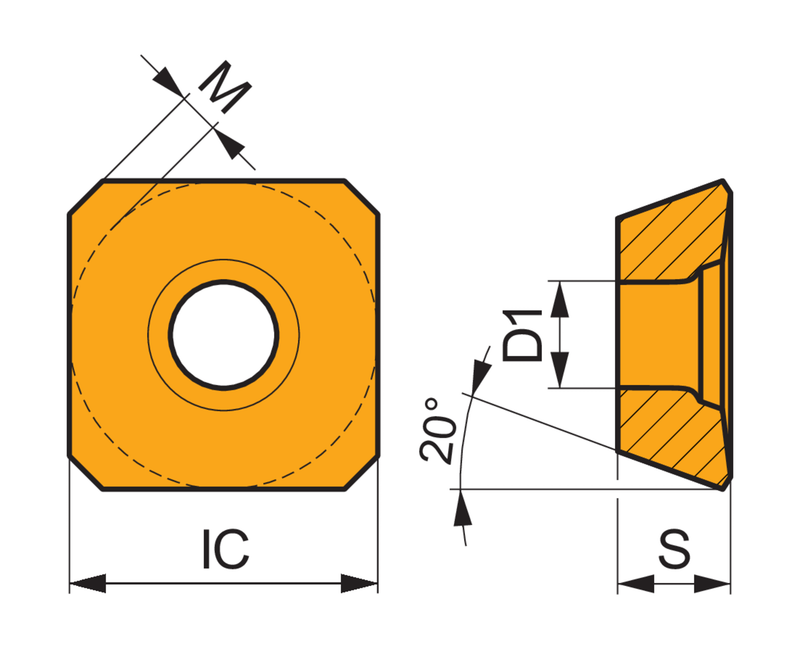

SEET 1204AFSN:M8330 — Line Drawing PDF Download
