SEET 12T3M-PM:M8330
SEET 12T3M-PM:M8330

SEET 12T3M-PM:M8330

UGC DOR7451006
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.66 CAD - $23.66 CAD
$23.66 CAD
$23.66 CAD - $23.66 CAD
$23.66 CAD

Vendu en lots de : 10

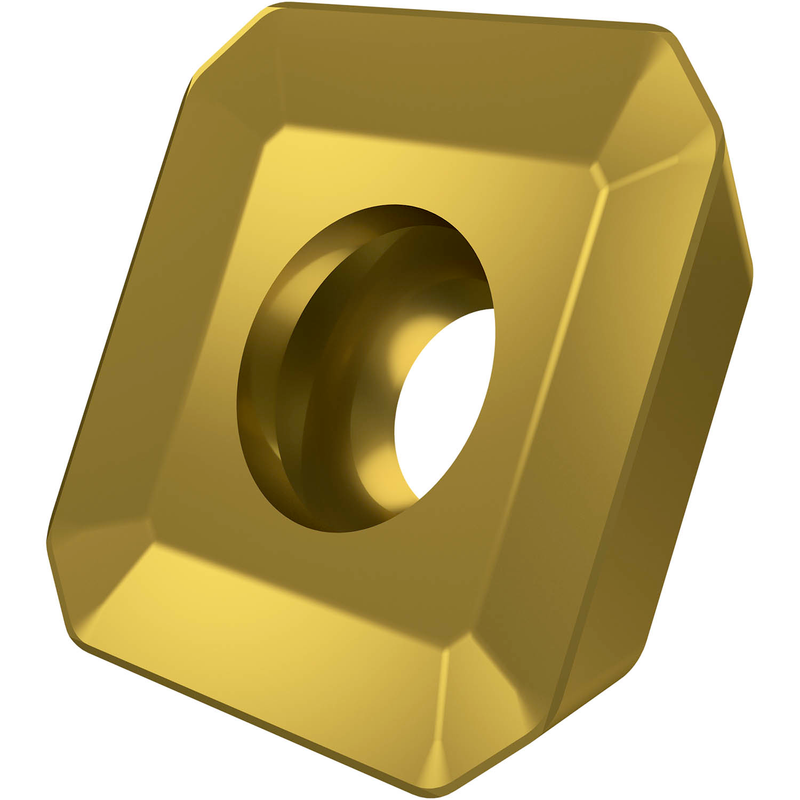

Plaquette de fraisage simple face SEET 12T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie PM avec arêtes de coupe arrondies et double facette, carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de grades ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 12T3M-PM:M8330
GradeM8330
Chipbreaker (CBMD)MP
Product Number7451006
Product FamilySEET 12h00
Insert Geometry
Insert DesignVOIR
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.528"
Inscribed Circle Dia. — mm (IC)13.4 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7451006
EAN3603603389151
File Type Download

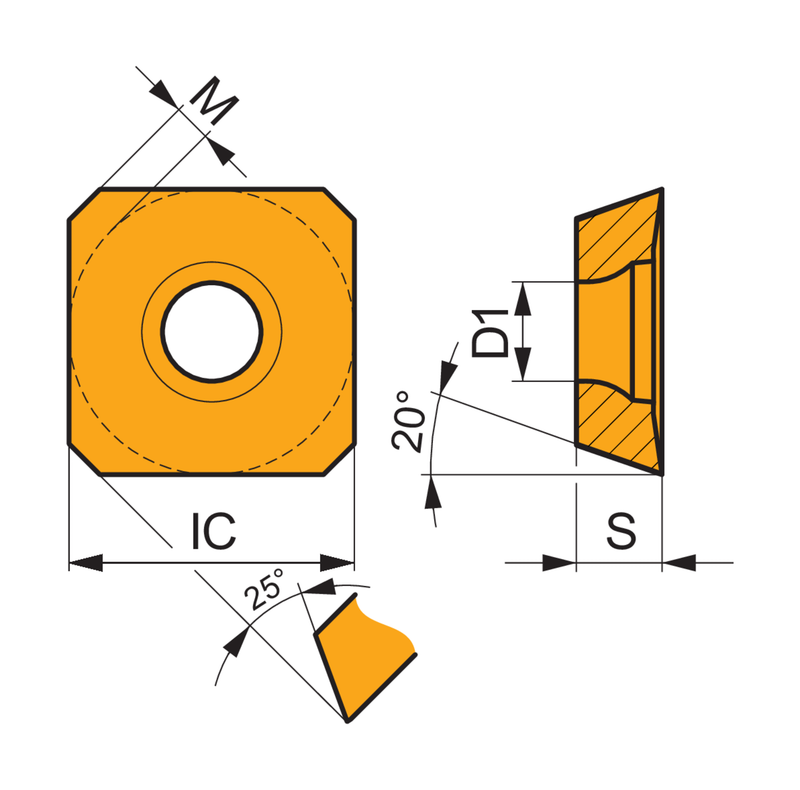

SEET 12T3M-PM:M8330 — Line Drawing PDF Download
