SEEW 1204AFEN:M8330
SEEW 1204AFEN:M8330

SEEW 1204AFEN:M8330

UGC DOR7451007
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.56 CAD - $24.56 CAD
$24.56 CAD
$24.56 CAD - $24.56 CAD
$24.56 CAD

Vendu en lots de : 10

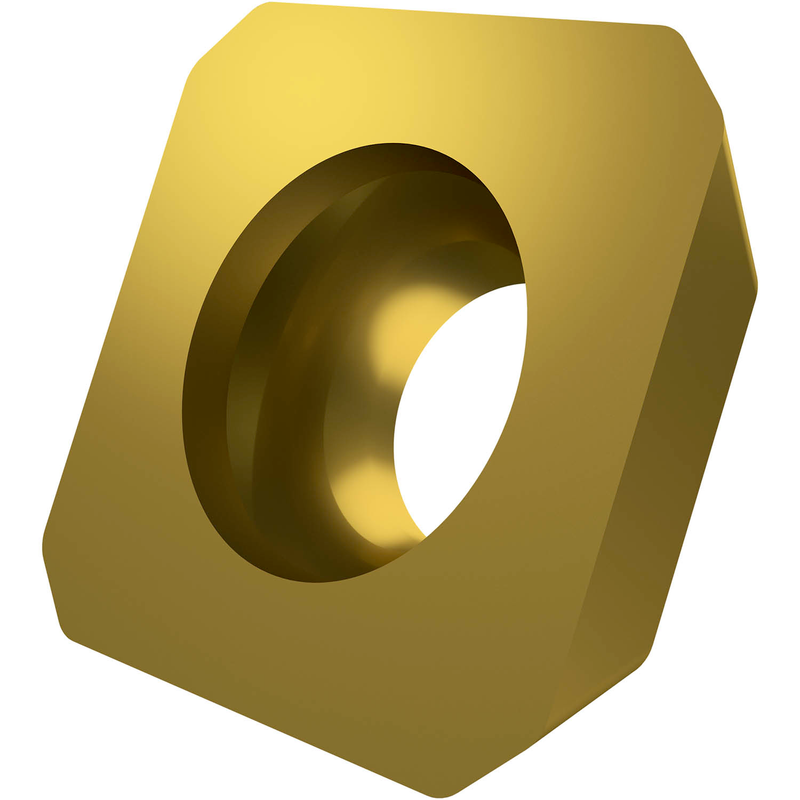

Plaquette de fraisage simple face SEEW 1204 à surface de coupe plane, carrée pour une profondeur de coupe maximale de 0,2559", avec un rayon de coin ", une précision d'indexation conforme à la classe de tolérance ISO-E avec des arêtes de coupe arrondies, en carbure WC-Co à grain fin revêtu PVD M8330, dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEEW 1204AFEN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451007
Product FamilySEEW 12
Insert Geometry
Insert DesignVUE
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7451007
EAN3603603389168
File Type Download

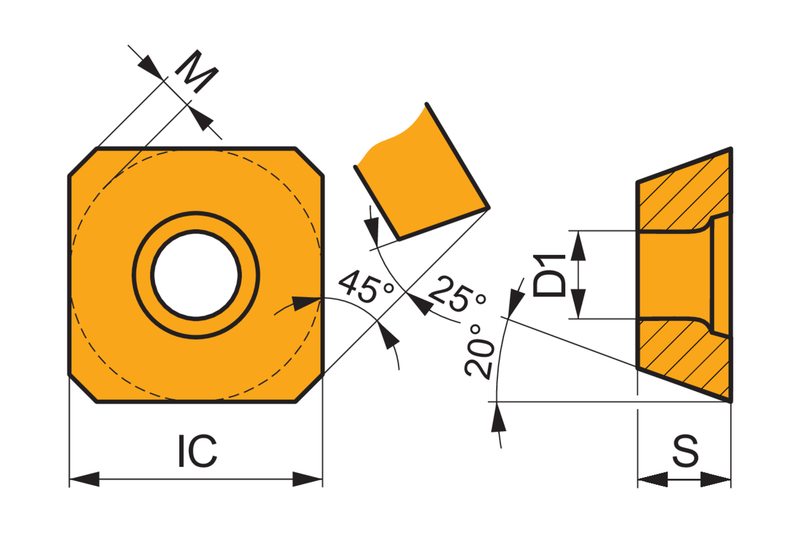

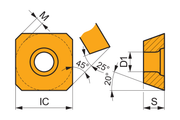

SEEW 1204AFEN:M8330 — Line Drawing PDF Download
