SEEW 1204AFSN:M8330
SEEW 1204AFSN:M8330

SEEW 1204AFSN:M8330

UGC DOR7451008
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.56 CAD - $24.56 CAD
$24.56 CAD
$24.56 CAD - $24.56 CAD
$24.56 CAD

Vendu en lots de : 10

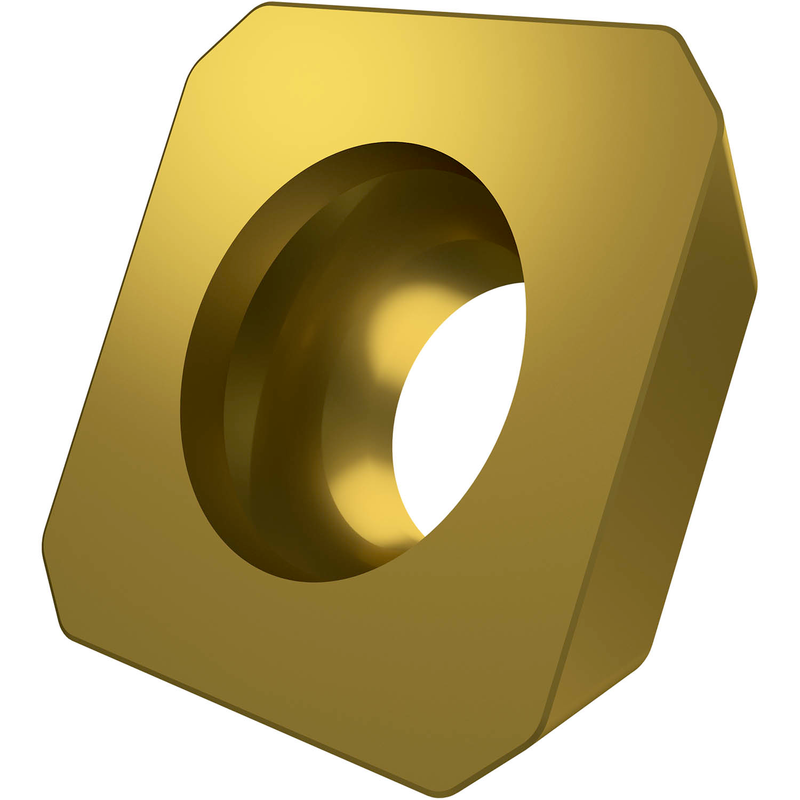

Plaquette de fraisage simple face SEEW 1204 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 6,5 mm, avec un rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-E avec arêtes de coupe et facettes arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de grades ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEEW 1204AFSN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451008
Product FamilySEEW 12
Insert Geometry
Insert DesignVOIR
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number7451008
EAN3603603389175
File Type Download

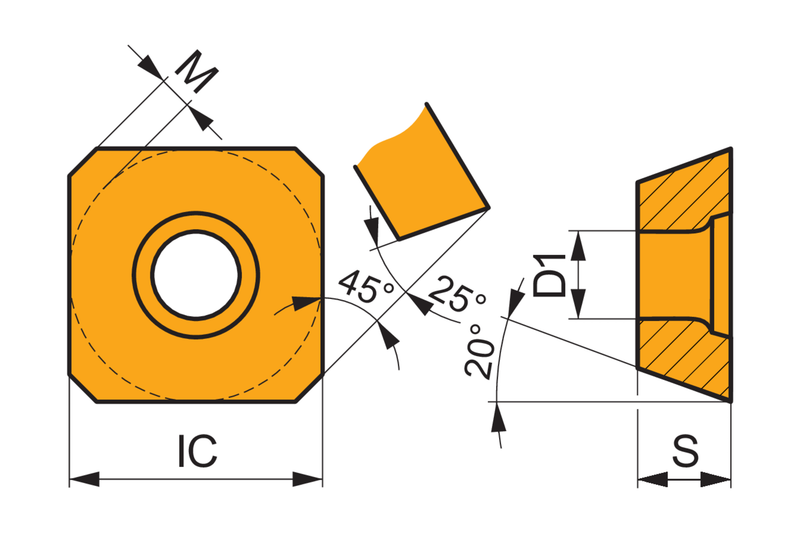

SEEW 1204AFSN:M8330 — Line Drawing PDF Download
