SNHN 43ENEN:M8330
SNHN 43ENEN:M8330

SNHN 43ENEN:M8330

UGC DOR7451015
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.47 CAD - $20.47 CAD
$20.47 CAD
$20.47 CAD - $20.47 CAD
$20.47 CAD

Vendu en lots de : 10

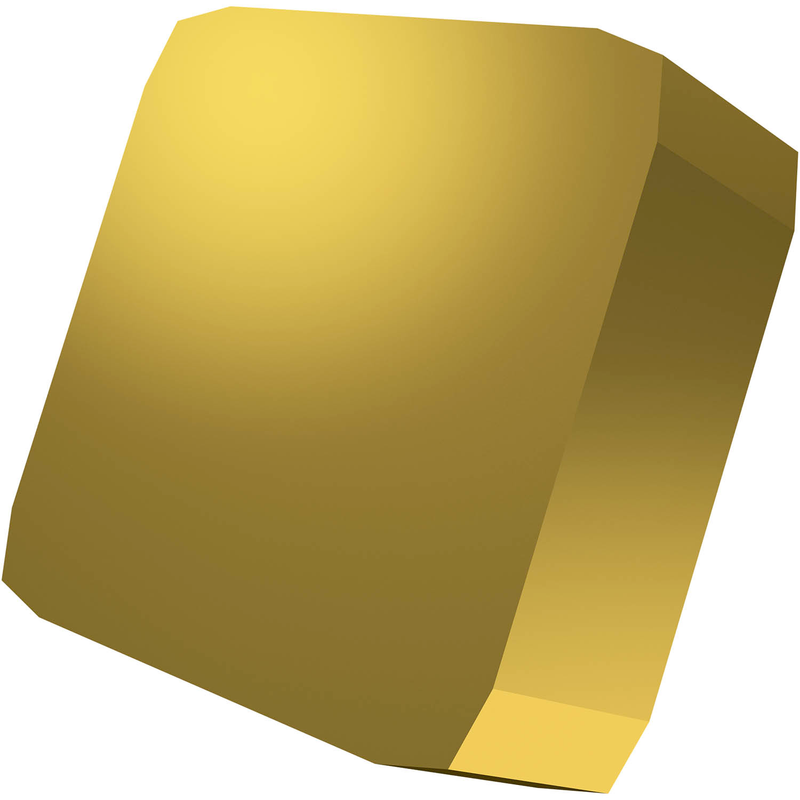

Plaquette de fraisage double face SNHN 1204 à surface de coupe plane, carrée pour une profondeur de coupe maximale de 9 mm, avec un rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-H avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 43ENEN:M8330
Product Name (ISO)SNHN 1204ENEN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451015
Product FamilySNHN

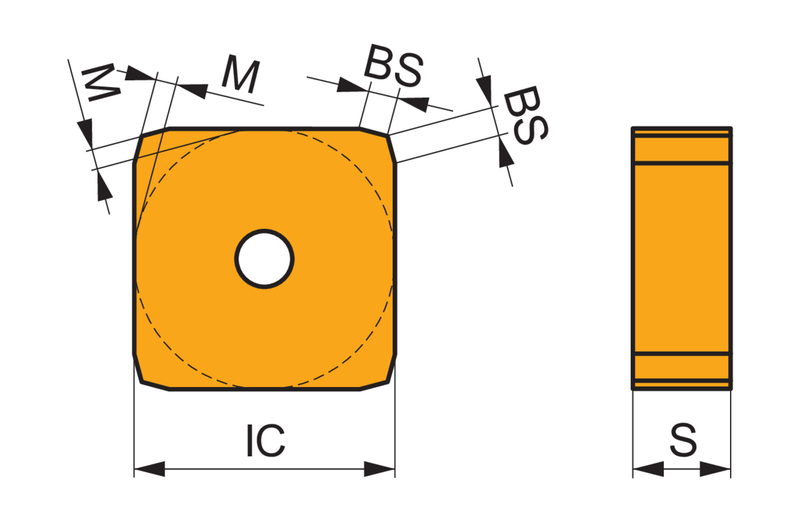

Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number7451015
EAN3603603389243
File Type Download
SNHN 43ENEN:M8330 — Line Drawing PDF Download
