SNHN 53ENEN:M8330
SNHN 53ENEN:M8330

SNHN 53ENEN:M8330

UGC DOR7451016
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.76 CAD - $25.76 CAD
$25.76 CAD
$25.76 CAD - $25.76 CAD
$25.76 CAD

Vendu en lots de : 10

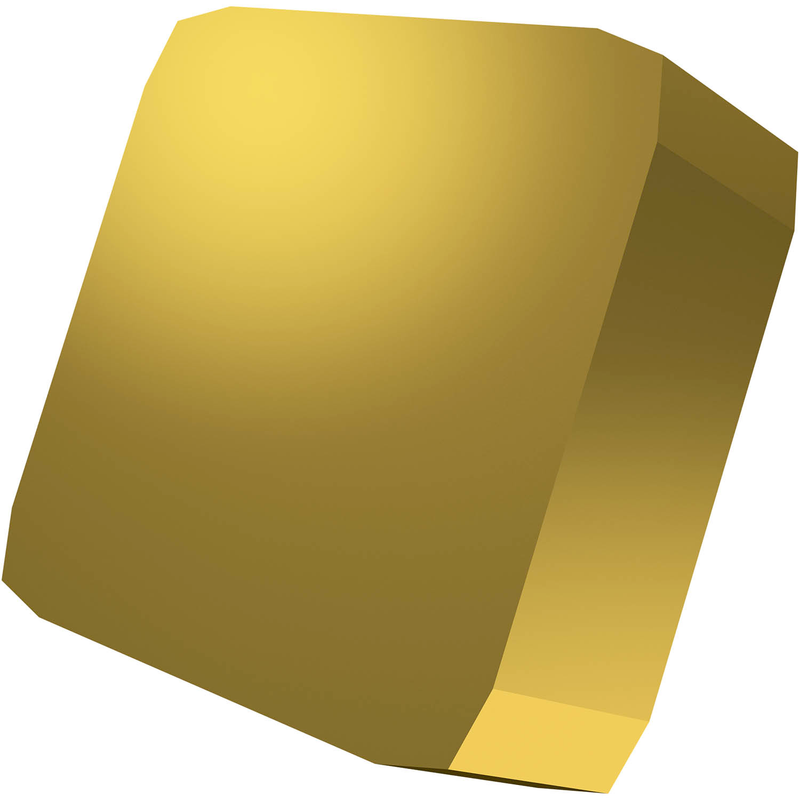

Plaquette de fraisage double face SNHN 1504 avec surface de dépouille plane, carrée pour une profondeur de coupe maximale de 13,5 mm, avec rayon de coin, une précision d'indexation selon la classe de tolérance ISO H avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 53ENEN:M8330
Product Name (ISO)SNHN 1504ENEN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451016
Product FamilySNHN

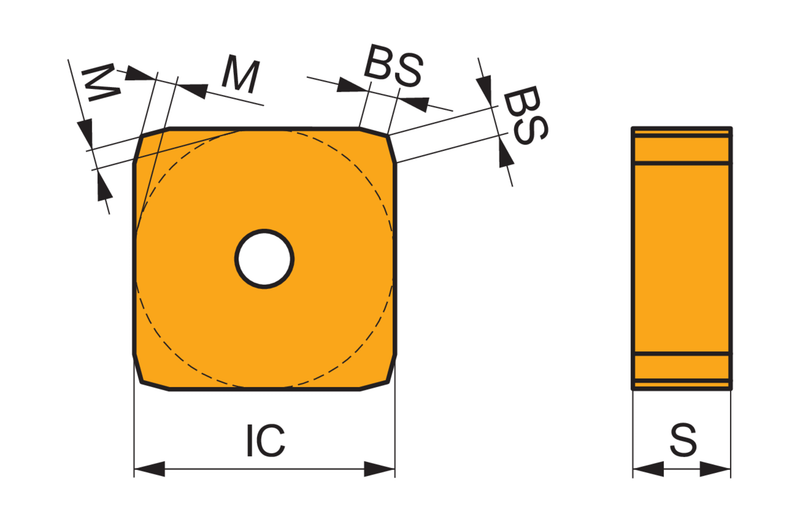

Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number7451016
EAN3603603389250
File Type Download
SNHN 53ENEN:M8330 — Line Drawing PDF Download
