SNHQ 1205AZTN:M8330
SNHQ 1205AZTN:M8330

SNHQ 1205AZTN:M8330

UGC DOR7451021
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.13 CAD - $30.13 CAD
$30.13 CAD
$30.13 CAD - $30.13 CAD
$30.13 CAD

Vendu en lots de : 10

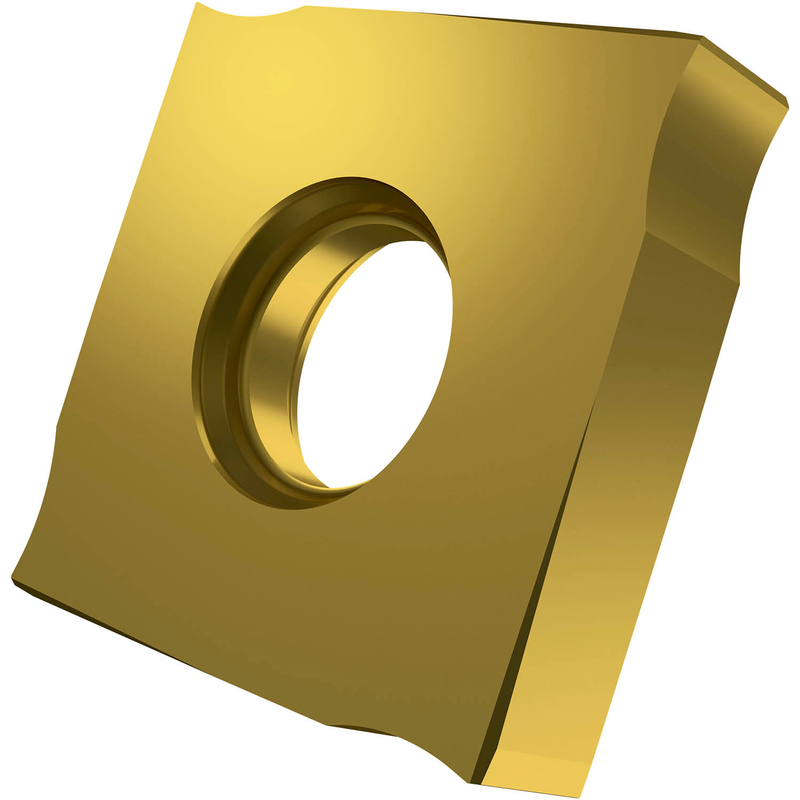

Plaquette de fraisage de rainures double face, pour une largeur de coupe de 10 mm avec arêtes de coupe à facette, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec fraises-disques S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 1205AZTN:M8330
GradeM8330
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number7451021
Product FamilySNHQ AZ
Insert Geometry
Insert DesignSNHQ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Tool Information
Reference Numbers
EDP Number7451021
EAN3603603389304
File Type Download

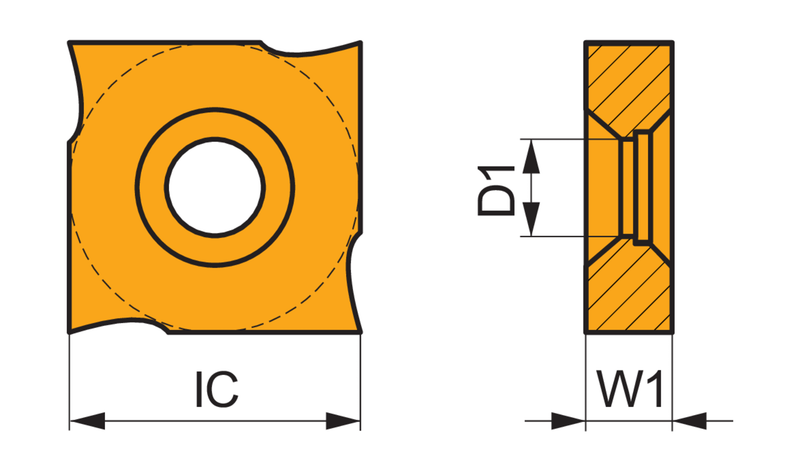

SNHQ 1205AZTN:M8330 — Line Drawing PDF Download
