SNHQ 1207AZTN:M8330
SNHQ 1207AZTN:M8330

SNHQ 1207AZTN:M8330

UGC DOR7451022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.39 CAD - $36.39 CAD
$36.39 CAD
$36.39 CAD - $36.39 CAD
$36.39 CAD

Vendu en lots de : 10

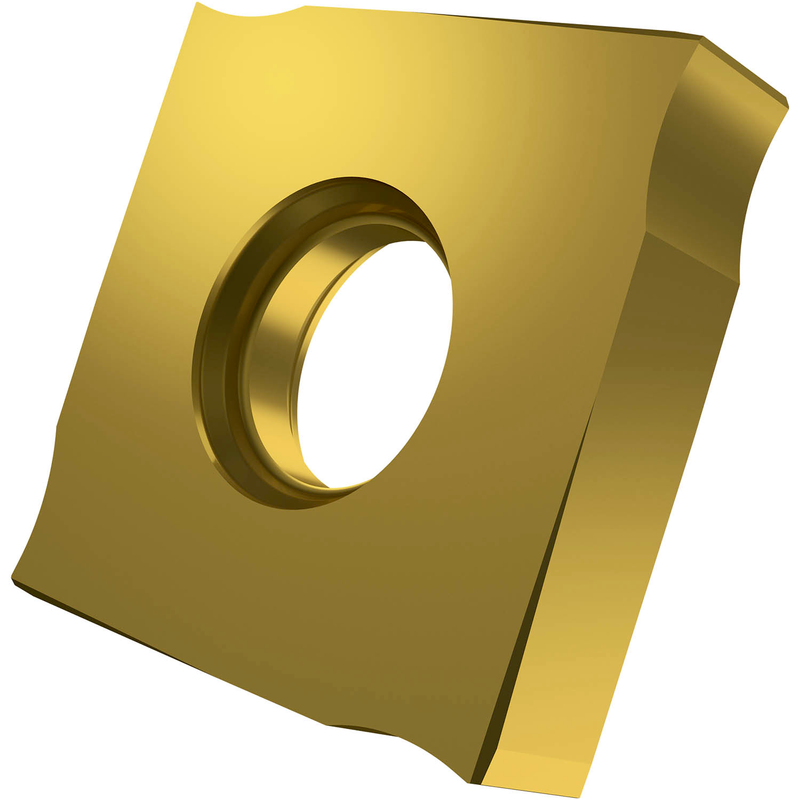

Plaquette de fraisage double-face à disque, pour une largeur de coupe de 0,4724" avec arêtes de coupe à facette, carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 1207AZTN:M8330
GradeM8330
Chipbreaker (CBMD)Avec brise-copeaux -pas de désignation
Product Number7451022
Product FamilySNHQ AZ
Insert Geometry
Insert DesignSNHQ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Tool Information
Reference Numbers
EDP Number7451022
EAN3603603389311
File Type Download

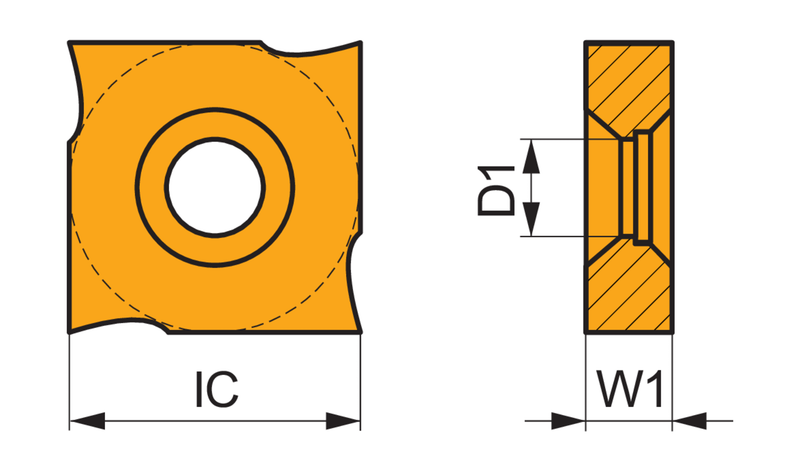

SNHQ 1207AZTN:M8330 — Line Drawing PDF Download
