SNU 533:M8330
SNU 533:M8330

SNU 533:M8330

UGC DOR7451028
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.90 CAD - $16.90 CAD
$16.90 CAD
$16.90 CAD - $16.90 CAD
$16.90 CAD

Vendu en lots de : 10

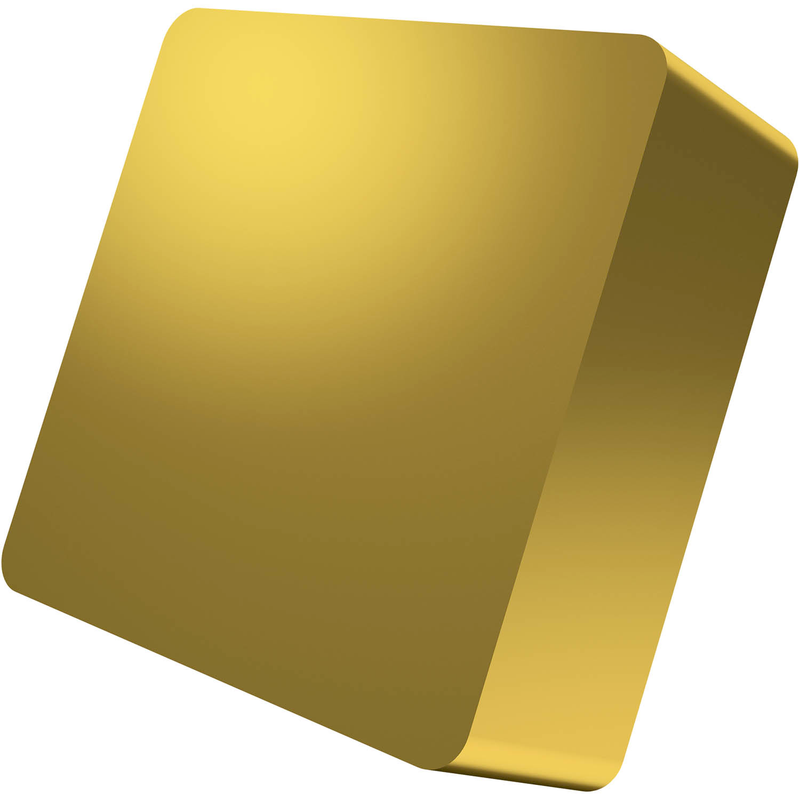

Plaquette de fraisage double face SNUN 1504 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 13,5 mm, avec un rayon de coin de 1,2 mm, une précision d'indexation selon la classe de tolérance ISO-U, en carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SNU 533:M8330
Product Name (ISO)SNUN 150412:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451028
Product FamilySNUN

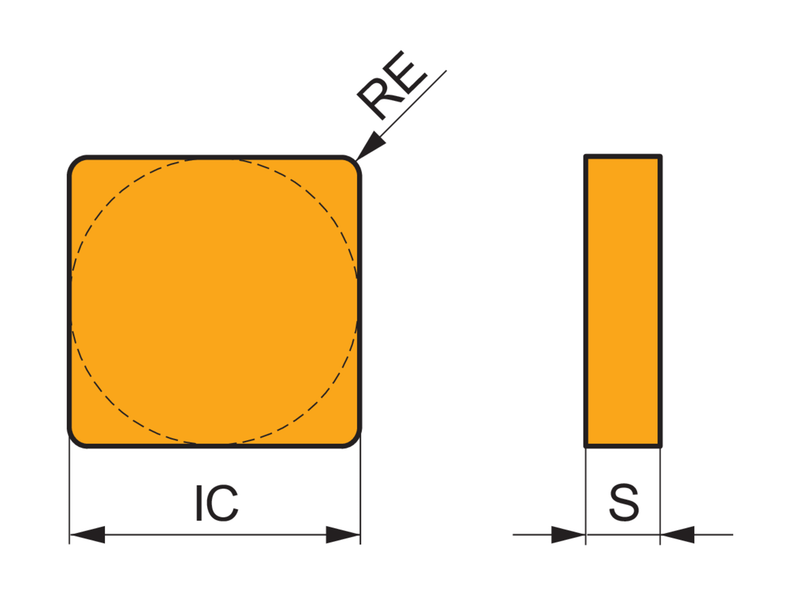

Insert Geometry
Insert DesignSNUN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number7451028
EAN3603603389373
File Type Download
SNU 533:M8330 — Line Drawing PDF Download
