SOMT 09T304-P:M8330
SOMT 09T304-P:M8330

SOMT 09T304-P:M8330

UGC DOR7451030
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.27 CAD - $20.27 CAD
$20.27 CAD
$20.27 CAD - $20.27 CAD
$20.27 CAD

Vendu en lots de : 10

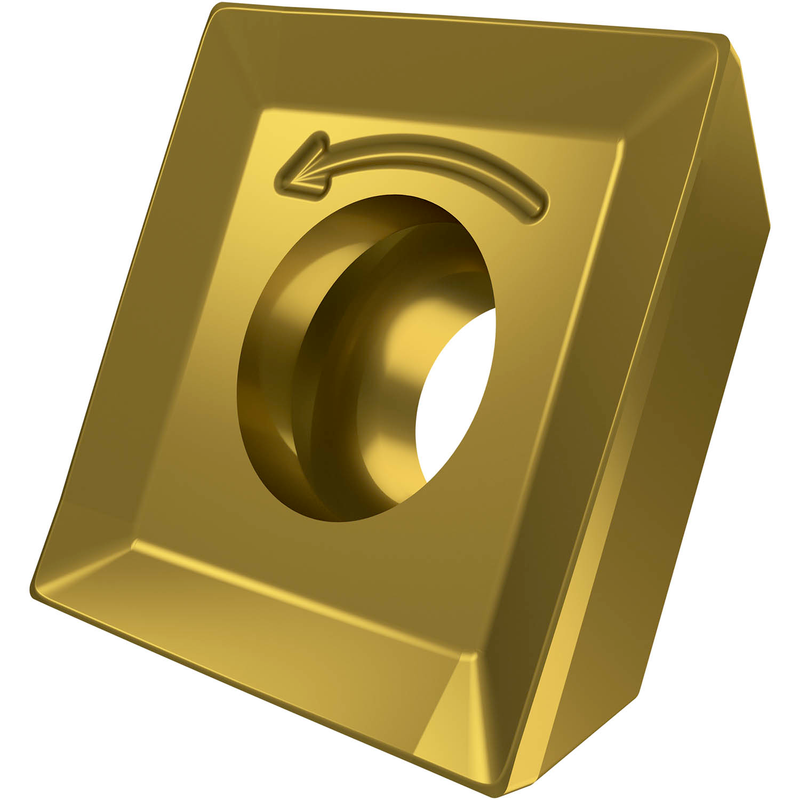

Plaquette de fraisage simple face SOMT 09T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 8 mm, avec un rayon de coin de 0,4 mm, une précision d'indexation selon la classe de tolérance ISO-M et une géométrie P, carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec des fraises à chanfreiner N-SSO09 ou des fraises à épaulement SSO09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SOMT 09T304-P:M8330
GradeM8330
Chipbreaker (CBMD)P
Product Number7451030
Product FamilySOMT 09
Insert Geometry
Insert DesignSDMT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.376"
Inscribed Circle Dia. — mm (IC)9.55 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7451030
EAN3603603389397
File Type Download
SOMT 09T304-P:M8330 — Line Drawing PDF Download
