SPG 422:M8330
SPG 422:M8330

SPG 422:M8330

UGC DOR7451040
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.07 CAD - $17.07 CAD
$17.07 CAD
$17.07 CAD - $17.07 CAD
$17.07 CAD

Vendu en lots de : 10

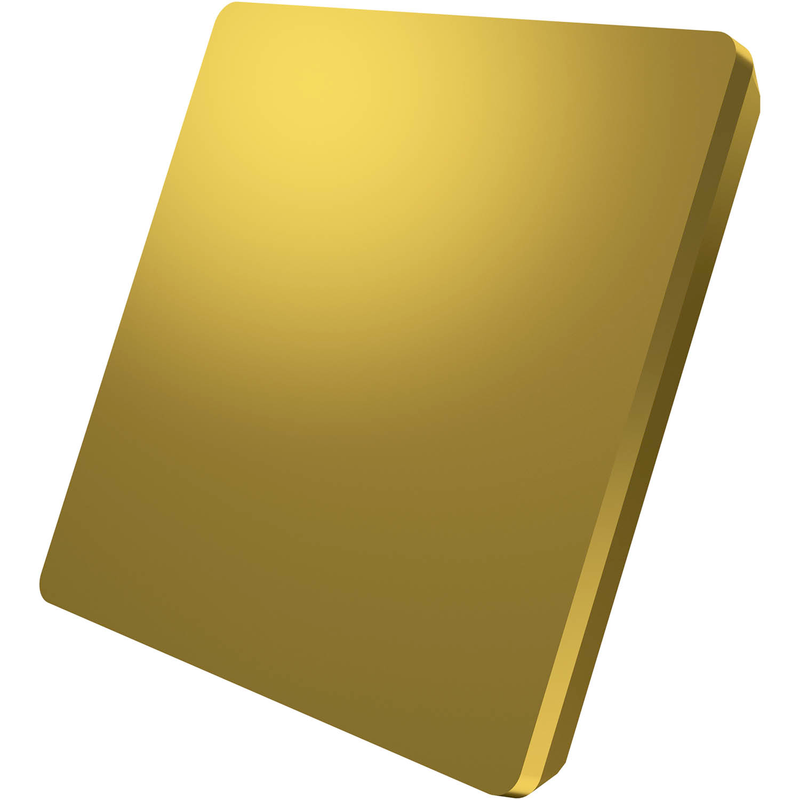

Plaquette de fraisage simple face SPGN 1203 à brise-copeaux plan, carrée pour une profondeur de coupe maximale de 9 mm (.3543"), avec un rayon de bec de 0,8 mm (.0315"), une précision d'indexage selon la classe de tolérance ISO G, en carbure WC-Co à grains fins revêtu PVD M8330 dans la nuance ISO K20-K40 pour l'usinage de la fonte avec des fraises à épaulement WSP25P

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 422:M8330
Product Name (ISO)SPGN 120308:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451040
Product FamilySPGN

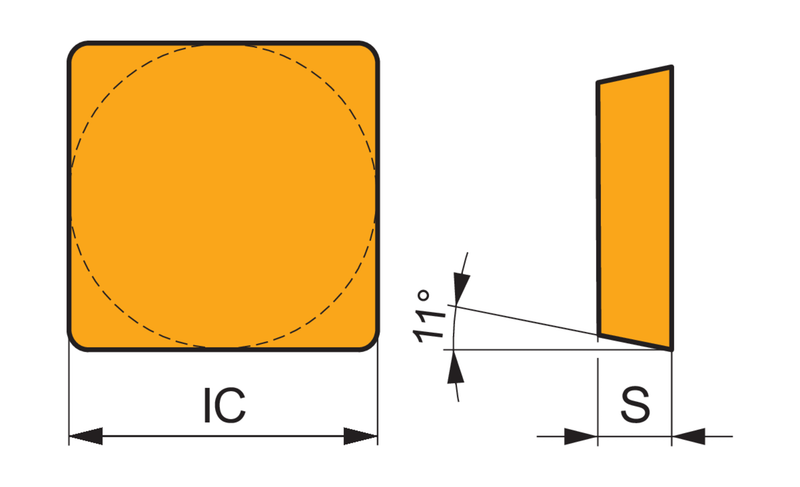

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number7451040
EAN3603603389496
File Type Download
SPG 422:M8330 — Line Drawing PDF Download
