SPKN 42EDER:M8330
SPKN 42EDER:M8330

SPKN 42EDER:M8330

UGC DOR7451043
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.79 CAD - $14.79 CAD
$14.79 CAD
$14.79 CAD - $14.79 CAD
$14.79 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face SPKN 1203 à brise-copeaux plat, de forme carrée pour coupe à droite avec une profondeur de coupe maximale de 9 mm, avec rayon de bec de ", une précision de positionnement selon la classe de tolérance ISO-K, arêtes de coupe arrondies, carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SPKN 42EDER:M8330
Product Name (ISO)SPKN 1203EDER:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451043
Product FamilySPKN
Insert Geometry
Insert DesignSPKN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number7451043
EAN3603603389526
File Type Download

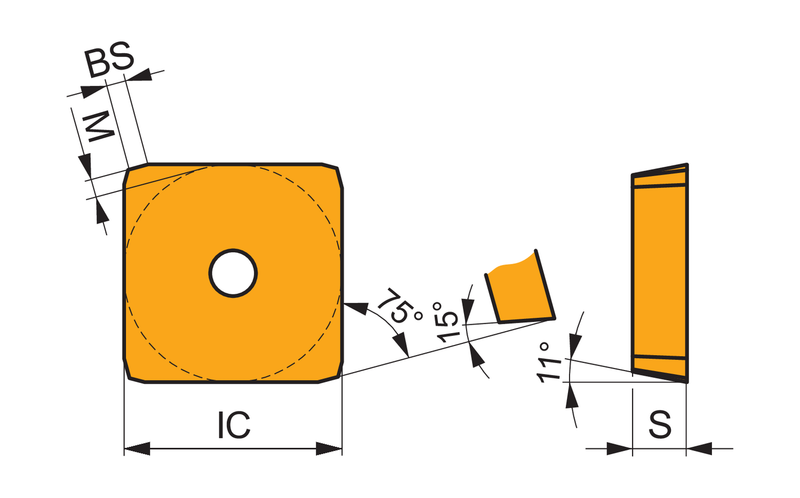

SPKN 42EDER:M8330 — Line Drawing PDF Download
