SPU 421:M8330
SPU 421:M8330

SPU 421:M8330

UGC DOR7451051
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 CAD - $13.29 CAD
$13.29 CAD
$13.29 CAD - $13.29 CAD
$13.29 CAD

Vendu en lots de : 10

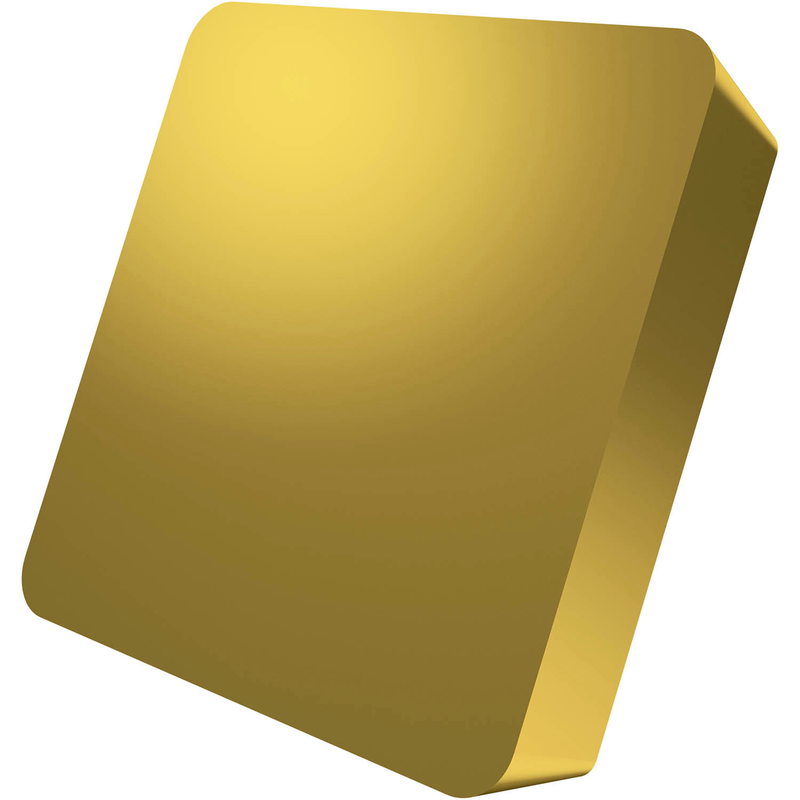

Plaquette de fraisage simple face SPUN 1203 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 9 mm (0,3543"), avec un rayon de coin de 0,4 mm (0,0157"), une précision de positionnement selon la classe de tolérance ISO U, en carbure WC-Co à grain fin revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 421:M8330
Product Name (ISO)SPUN 120304:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451051
Product FamilyFILÉ
Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number7451051
EAN3603603389601
File Type Download
SPU 421:M8330 — Line Drawing PDF Download
