SPU 423:M8330
SPU 423:M8330

SPU 423:M8330

UGC DOR7451053
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 CAD - $13.29 CAD
$13.29 CAD
$13.29 CAD - $13.29 CAD
$13.29 CAD

Vendu en lots de : 10

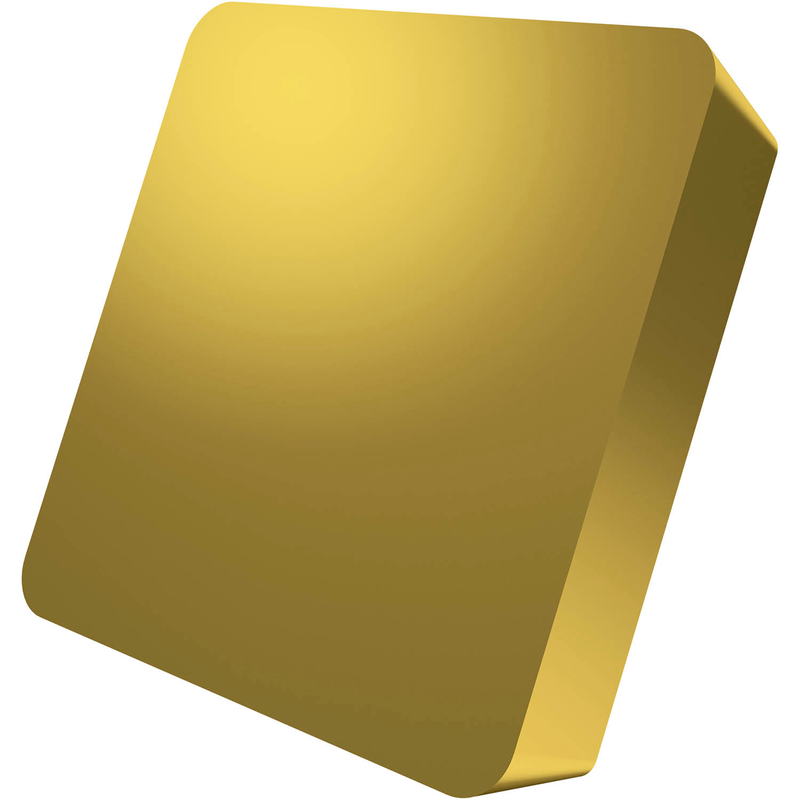

Plaquette de fraisage simple face SPUN 1203 avec une surface de coupe plane, carrée, pour une profondeur de coupe maximale de 0,3543", avec un rayon de coin de 0,0472", une précision d'indexage selon la classe de tolérance ISO-U, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 423:M8330
Product Name (ISO)SPUN 120312:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451053
Product FamilyFilé

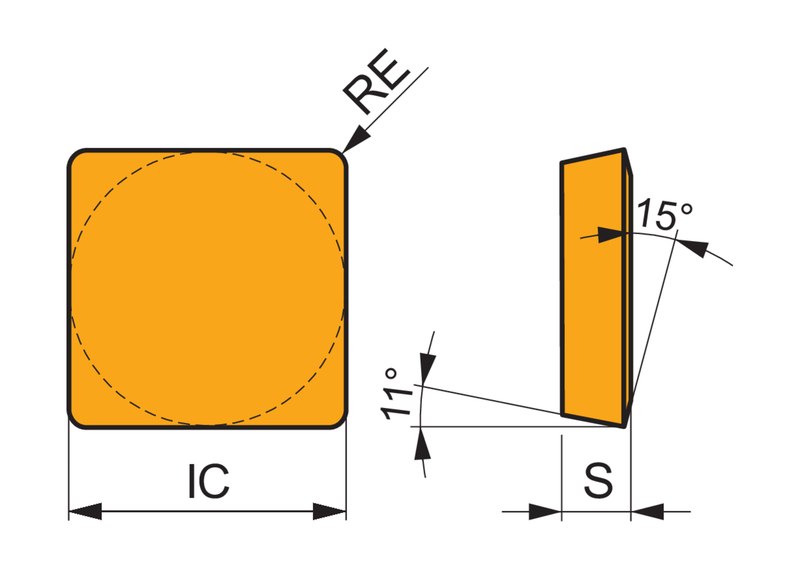

Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number7451053
EAN3603603389625
File Type Download
SPU 423:M8330 — Line Drawing PDF Download
