SPU 533:M8330
SPU 533:M8330

SPU 533:M8330

UGC DOR7451054
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

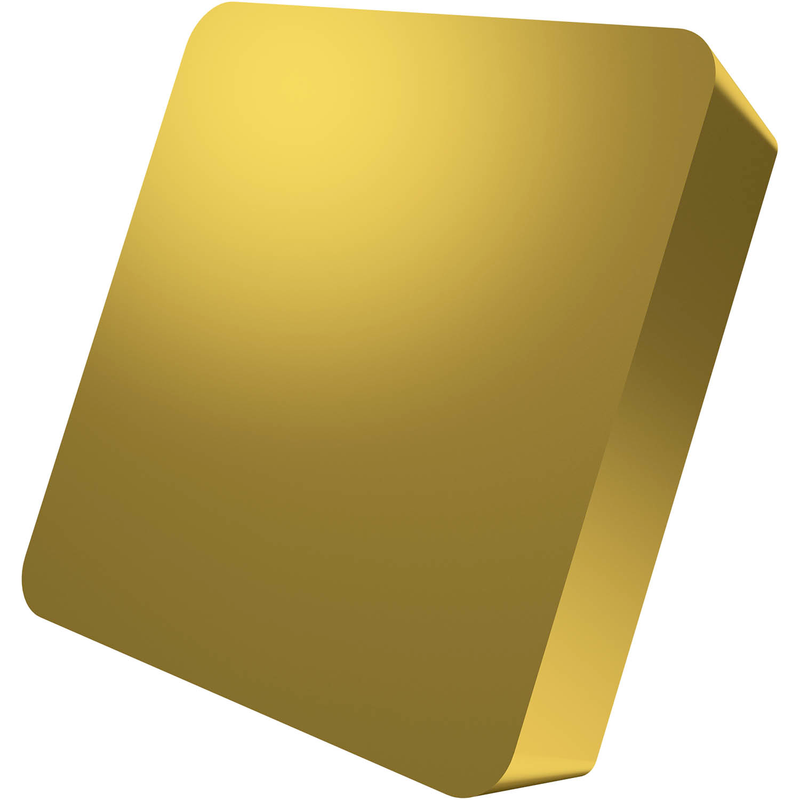

Plaquette de fraisage simple face SPUN 1504 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 13 mm, avec un rayon de pointe de 1,2 mm, une précision de positionnement selon la classe de tolérance ISO-U, en carbure WC-Co à grain fin revêtu PVD M8330 de classe ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 533:M8330
Product Name (ISO)SPUN 150412:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451054
Product FamilyFILÉ

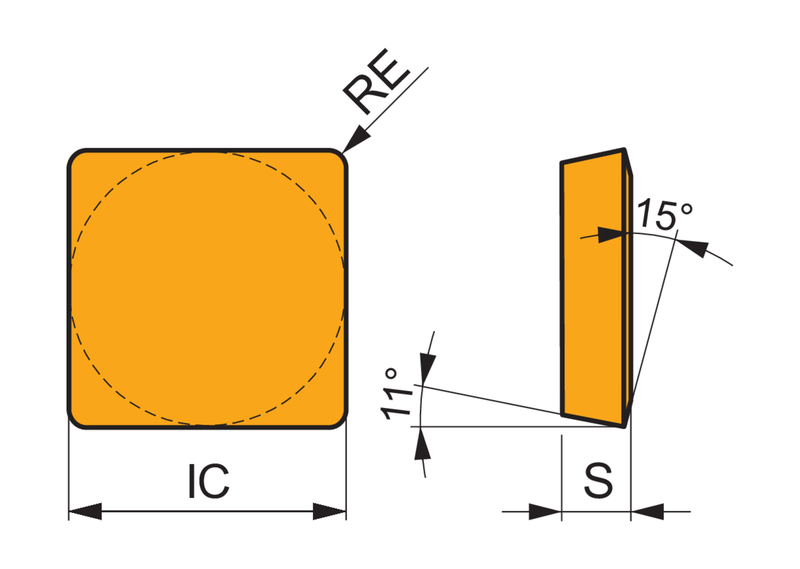

Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number7451054
EAN3603603389632
File Type Download
SPU 533:M8330 — Line Drawing PDF Download
