TPKN 32PDER:M8330
TPKN 32PDER:M8330

TPKN 32PDER:M8330

UGC DOR7451105
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.36 CAD - $13.36 CAD
$13.36 CAD
$13.36 CAD - $13.36 CAD
$13.36 CAD

Vendu en lots de : 10

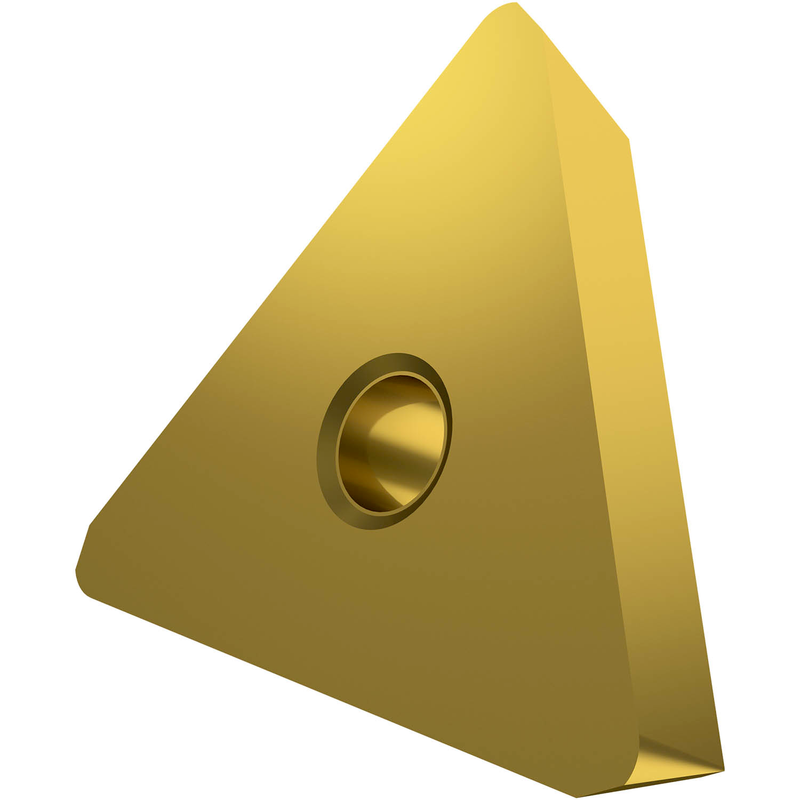

Plaquette de fraisage simple face TPKN 1603 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 32PDER:M8330
Product Name (ISO)TPKN 1603PDER:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451105
Product FamilyTPKN

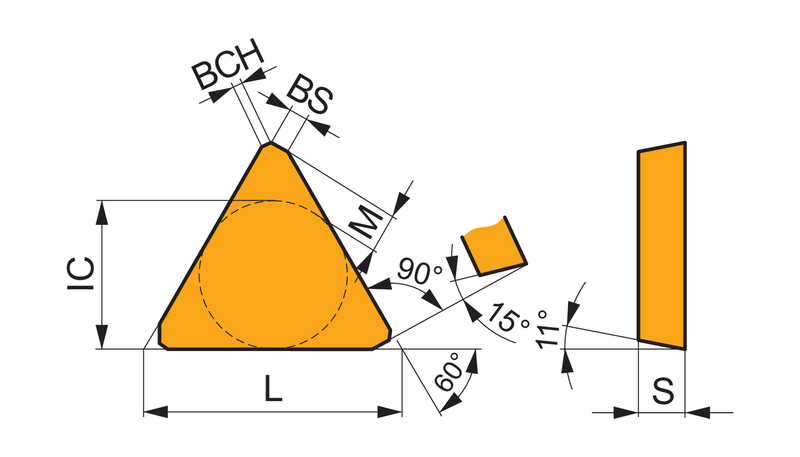

Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7451105
EAN3603603389731
File Type Download
TPKN 32PDER:M8330 — Line Drawing PDF Download
