TPKN 43PDER:M8330
TPKN 43PDER:M8330

TPKN 43PDER:M8330

UGC DOR7451107
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.11 CAD - $20.11 CAD
$20.11 CAD
$20.11 CAD - $20.11 CAD
$20.11 CAD

Vendu en lots de : 10

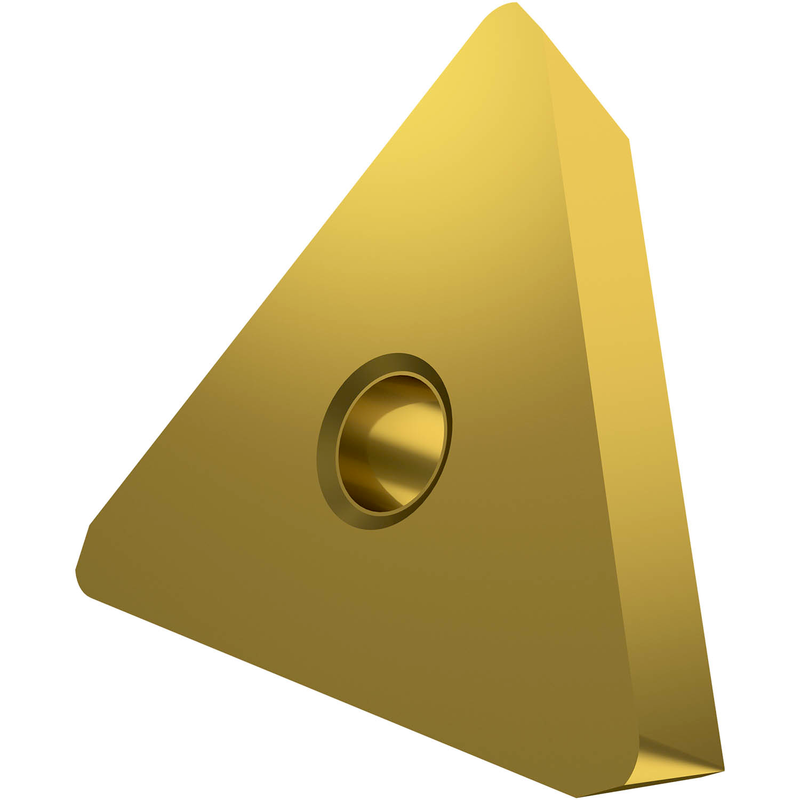

Plaquette de fraisage simple face TPKN 2204 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 17 mm, avec un rayon de coin de ", une précision d'indexation selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies, du carbure WC-Co à grain fin revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 43PDER:M8330
Product Name (ISO)TPKN 2204PDER:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451107
Product FamilyTPKN
Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - angulaire, angle d'ouverture de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number7451107
EAN3603603389755
File Type Download

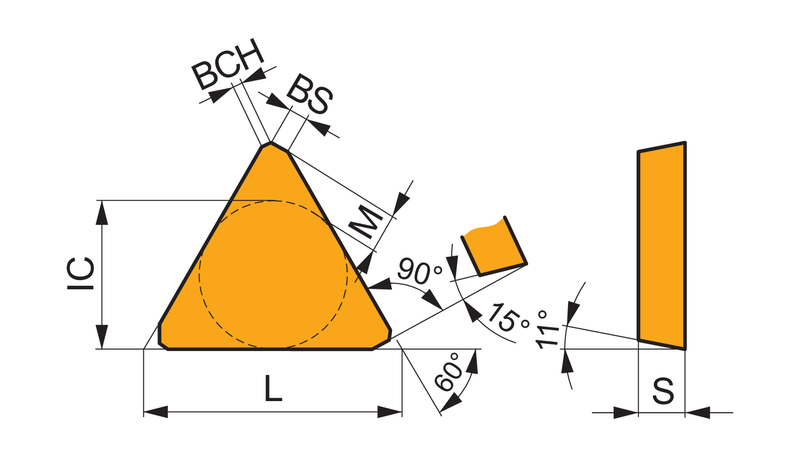

TPKN 43PDER:M8330 — Line Drawing PDF Download
