TPU 323:M8330
TPU 323:M8330

TPU 323:M8330

UGC DOR7451115
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.36 CAD - $11.36 CAD
$11.36 CAD
$11.36 CAD - $11.36 CAD
$11.36 CAD

Vendu en lots de : 10

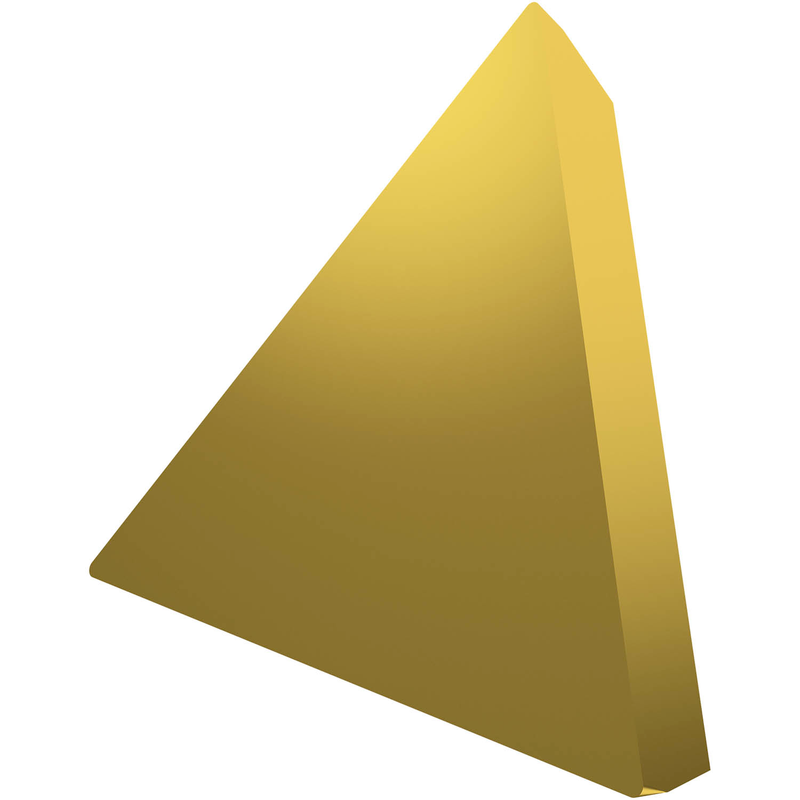

Plaquette de fraisage simple face TPUN 1603 avec une surface d'attaque plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin de 1,2 mm, une précision d'indexage selon la classe de tolérance ISO-U, en carbure de WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 323:M8330
Product Name (ISO)TPUN 160312:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451115
Product FamilyTPUN

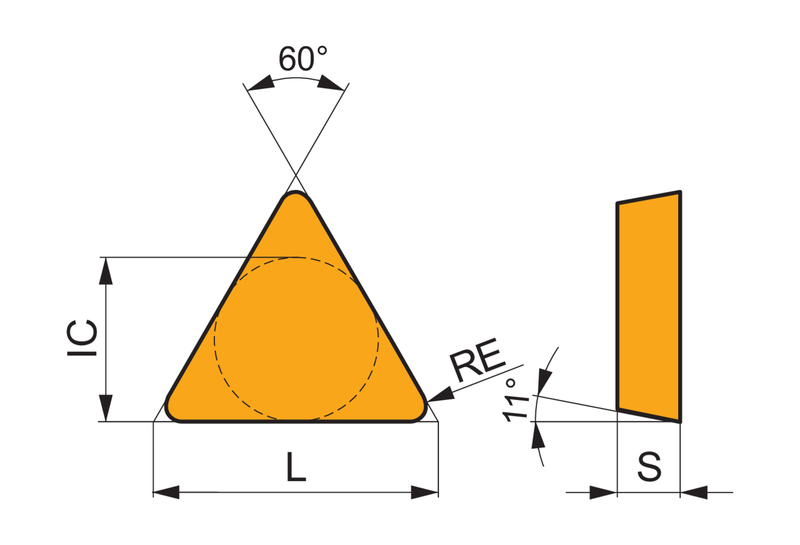

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7451115
EAN3603603389830
File Type Download
TPU 323:M8330 — Line Drawing PDF Download
