TPU 433:M8330
TPU 433:M8330

TPU 433:M8330

UGC DOR7451117
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.43 CAD - $16.43 CAD
$16.43 CAD
$16.43 CAD - $16.43 CAD
$16.43 CAD

Vendu en lots de : 10

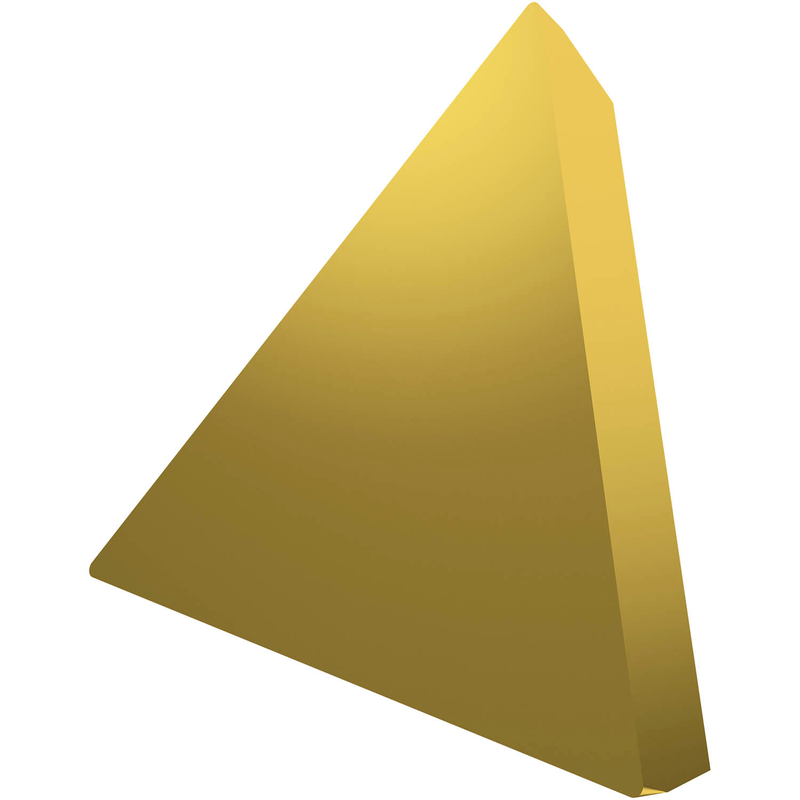

Plaquette de fraisage simple face TPUN 2204 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 17 mm, avec un rayon de coin de 1,2 mm, une précision d'indexation selon la classe de tolérance ISO-U, en carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de nuances ISO K20-K40 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 433:M8330
Product Name (ISO)TPUN 220412:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7451117
Product FamilyPNUJ

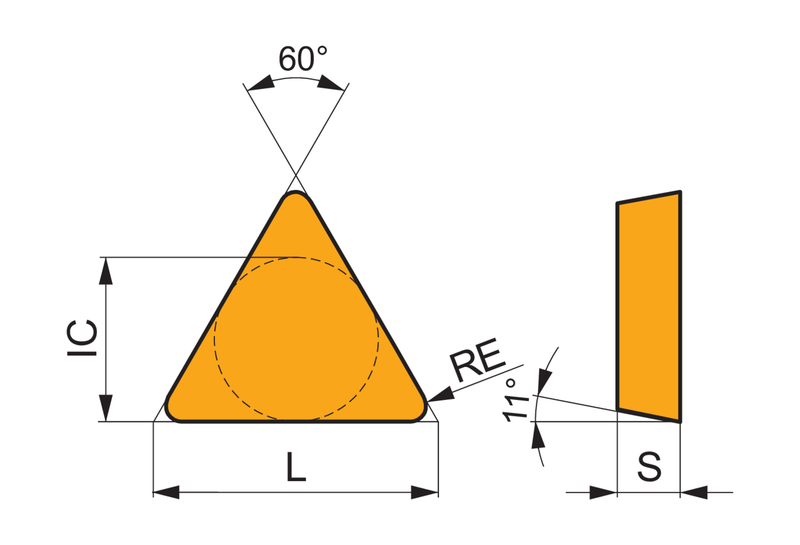

Insert Geometry
Insert DesignPPUN
Insert Shape Code (SC)T - angulaire, angle d'ouverture 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number7451117
EAN3603603389854
File Type Download
TPU 433:M8330 — Line Drawing PDF Download
