ZP 16ER-M:M8330
ZP 16ER-M:M8330

ZP 16ER-M:M8330

UGC DOR7451130
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.94 CAD - $45.94 CAD
$45.94 CAD
$45.94 CAD - $45.94 CAD
$45.94 CAD

Vendu en lots de : 10

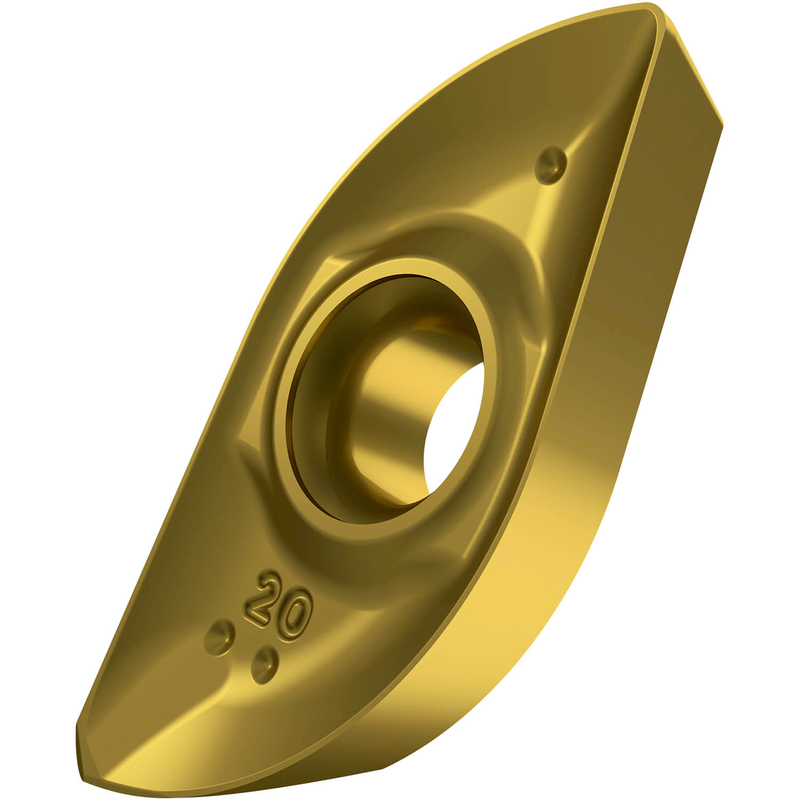

Plaquette de fraisage à copier indexable pour le rayon de la sphère, pour un diamètre de 16 mm avec une profondeur de coupe maximale de 15 mm, géométrie M et revêtement PVD carbure WC-Co à grains fins M8330 dans la plage ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier L2-SZP fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 16ER-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7451130
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number7451130
EAN3603603389984
File Type Download
ZP 16ER-M:M8330 — Line Drawing PDF Download
