ZP 25ER-M:M8330
ZP 25ER-M:M8330

ZP 25ER-M:M8330

UGC DOR7451132
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.20 CAD - $61.20 CAD
$61.20 CAD
$61.20 CAD - $61.20 CAD
$61.20 CAD

Vendu en lots de : 10

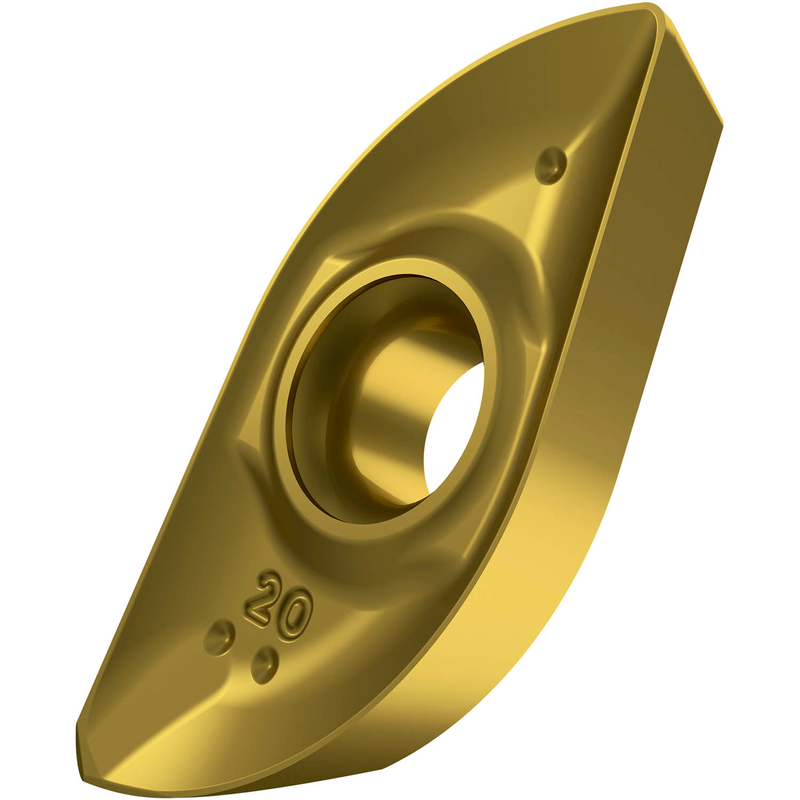

Plaquette de fraisage à copier indexable à bout sphérique d'un diamètre de 25 mm (0,9843") pour une profondeur de coupe maximale de 22,3 mm (0,878"), géométrie M et carbure WC-Co à grain fin revêtu PVD M8330 de classe ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier L2-SZP et les fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 25ER-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7451132
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.878"
Depth of Cut Max — mm (APMX)22.3 mm
Tool Information
Reference Numbers
EDP Number7451132
EAN3603603390003
File Type Download
ZP 25ER-M:M8330 — Line Drawing PDF Download
