ZP 32ER-M:M8330
ZP 32ER-M:M8330

ZP 32ER-M:M8330

UGC DOR7451133
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.97 CAD - $76.97 CAD
$76.97 CAD
$76.97 CAD - $76.97 CAD
$76.97 CAD

Vendu en lots de : 5

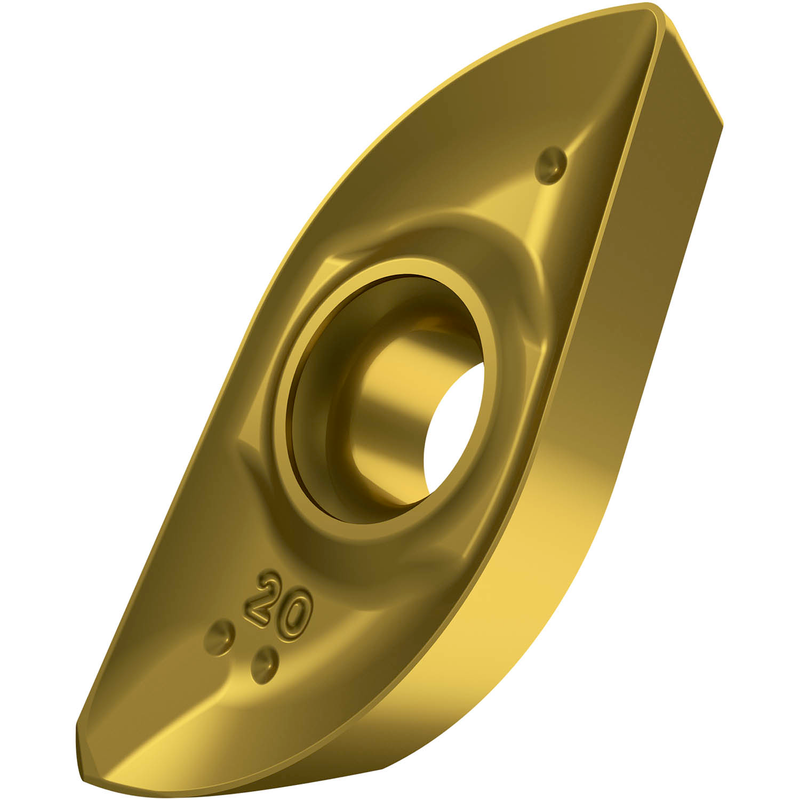

Plaquette à copier à rayon de bout sphérique indexable pour un diamètre de 1,2598" pour une profondeur de coupe maximale de 1,126", géométrie M et carbure WC-Co à grains fins revêtu PVD M8330 dans la gamme de classes ISO P20-P40 pour l'usinage de l'acier avec des fraises à copier L2-SZP fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 32ER-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7451133
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)1.126"
Depth of Cut Max — mm (APMX)28.6 mm
Tool Information
Reference Numbers
EDP Number7451133
EAN3603603390010
File Type Download
ZP 32ER-M:M8330 — Line Drawing PDF Download
