BNGX 10T308SR-M:M8310
BNGX 10T308SR-M:M8310

BNGX 10T308SR-M:M8310

UGC DOR7451990
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.01 CAD - $20.01 CAD
$20.01 CAD
$20.01 CAD - $20.01 CAD
$20.01 CAD

Vendu en lots de : 10

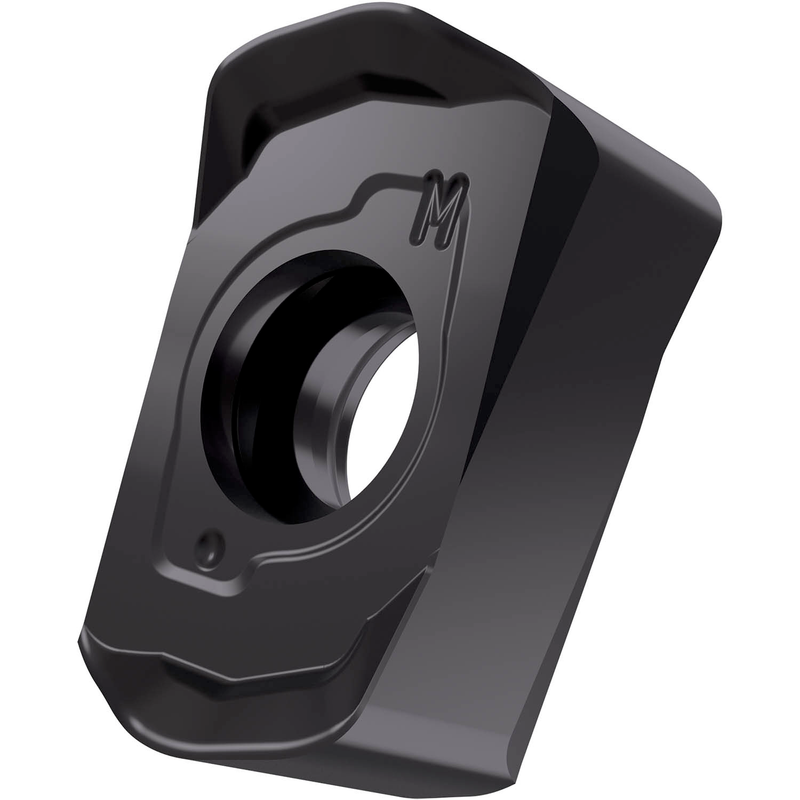

Plaquette de fraisage double face BNGX 10T3, parallélogramme 82° et conception à avance rapide pour une profondeur de coupe maximale de 1,00 mm, avec un rayon de coin de 0,80 mm, une précision d'indexage selon la classe de tolérance ISO G et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de grades ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec les fraises à avance rapide SBN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BNGX 10T308SR-M:M8310
GradeM8310
Chipbreaker (CBMD)M
Product Number7451990
Product FamilyBNGX 10

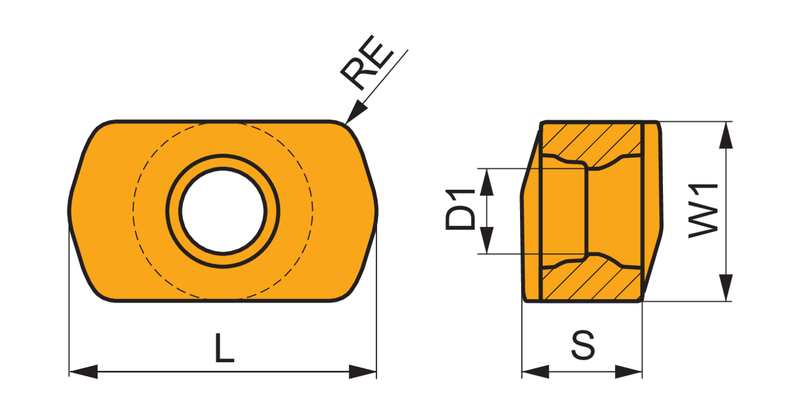

Insert Geometry
Insert DesignBNGX
Insert Shape Code (SC)B - parallélogramme angle inclus de 82°
Insert Thickness — in (S)0.154"
Insert Thickness — mm (S)3.9 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7451990
EAN3603603386402
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
BNGX 10T308SR-M:M8310 — 3D Model STP Download
BNGX 10T308SR-M:M8310 — Line Drawing PDF Download
