18E2R030A16-SBN10-C
18E2R030A16-SBN10-C
18E2R030A16-SBN10-C

18E2R030A16-SBN10-C

UGC DOR7452544
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$323.00 CAD - $323.00 CAD
$323.00 CAD
$323.00 CAD - $323.00 CAD
$323.00 CAD

Vendu en lots de : 1

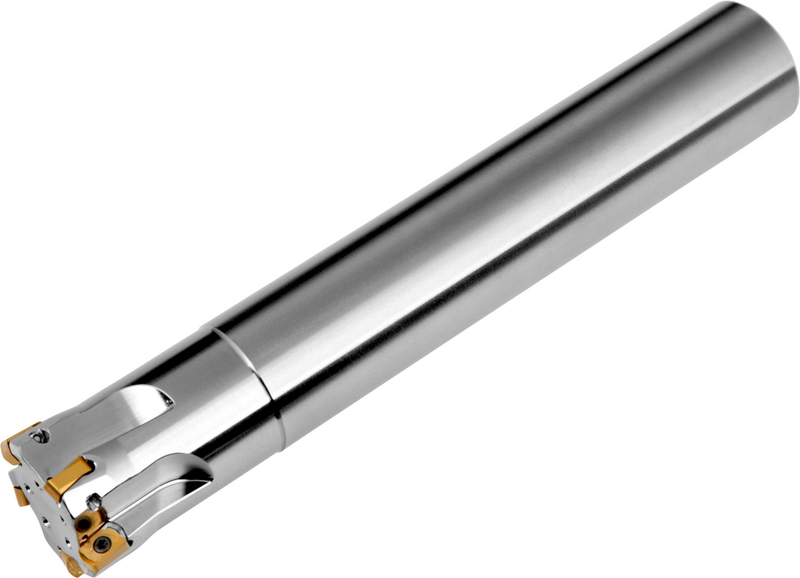

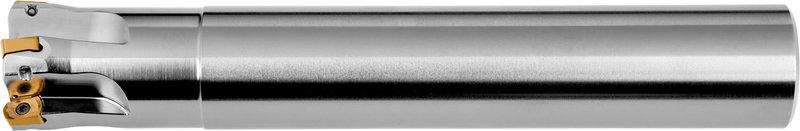

Fraise à avance rapide avec une géométrie positive/négative qui utilise 2 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 18 mm avec un angle d'attaque de 20° et une queue cylindrique de 16 mm selon DIN 1835A, longueur fonctionnelle 30 mm et longueur totale 150 mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18E2R030A16-SBN10-C
Product Number7452544
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.449"
Cutting Diameter — mm (DC)11.4 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452544
EAN3603603388079
File Type Download
18E2R030A16-SBN10-C — 3D Model STP Download
18E2R030A16-SBN10-C — 2D Model DXF Download
18E2R030A16-SBN10-C — Line Drawing PDF Download
