20E3R080A20-SBN10-C
20E3R080A20-SBN10-C
20E3R080A20-SBN10-C

20E3R080A20-SBN10-C

UGC DOR7452545
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.00 CAD - $353.00 CAD
$353.00 CAD
$353.00 CAD - $353.00 CAD
$353.00 CAD

Vendu en lots de : 1

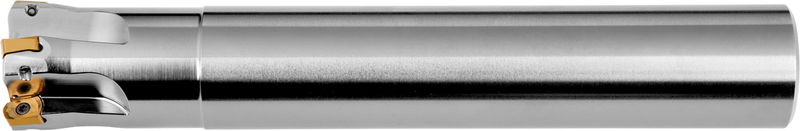

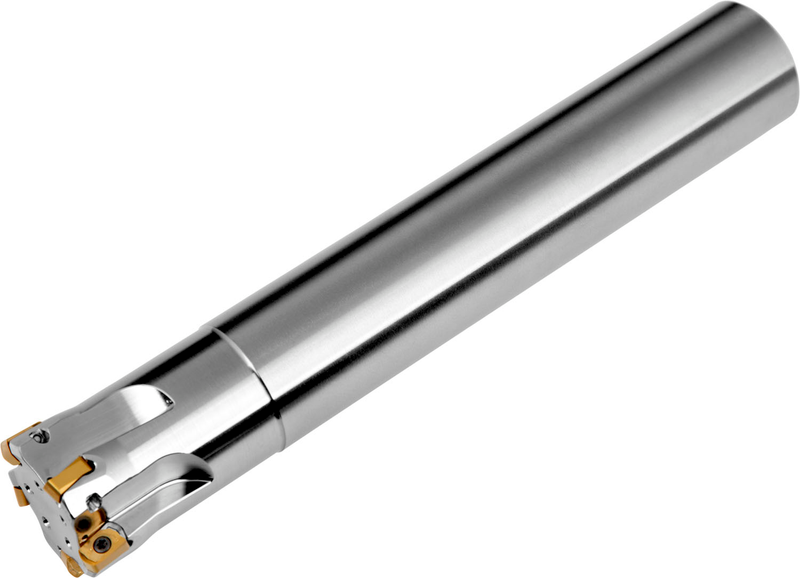

Fraise à avance rapide avec géométrie positive/négative utilisant 3 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe de 20 mm avec angle d'attaque de 20° et queue cylindrique de 20 mm conforme à la norme DIN 1835A, longueur utile de 80 mm et longueur totale de 160 mm, arrosage par l'intérieur pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E3R080A20-SBN10-C
Product Number7452545
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.528"
Cutting Diameter — mm (DC)13.4 mm
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452545
EAN3603603388086
File Type Download
20E3R080A20-SBN10-C — 3D Model STP Download
20E3R080A20-SBN10-C — 2D Model DXF Download
20E3R080A20-SBN10-C — Line Drawing PDF Download
