25E4R050A25-SBN10-C
25E4R050A25-SBN10-C
25E4R050A25-SBN10-C

25E4R050A25-SBN10-C

UGC DOR7452546
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$382.00 CAD - $382.00 CAD
$382.00 CAD
$382.00 CAD - $382.00 CAD
$382.00 CAD

Vendu en lots de : 1

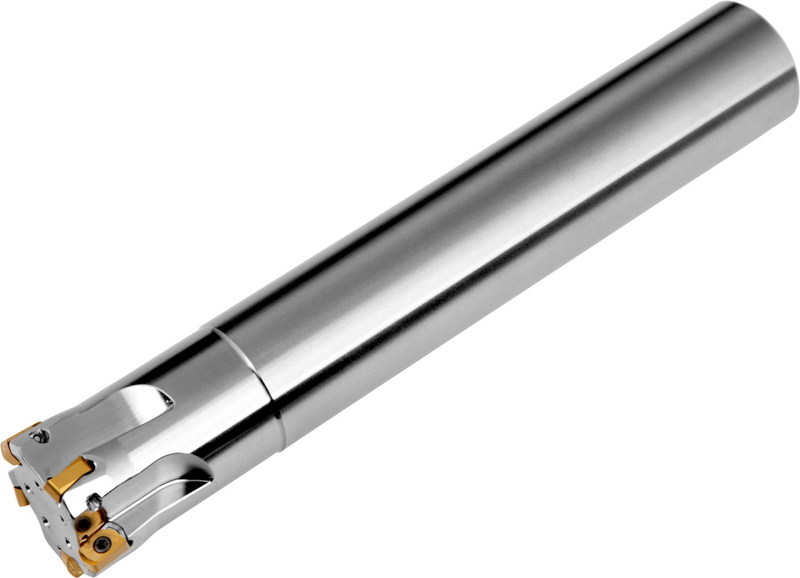

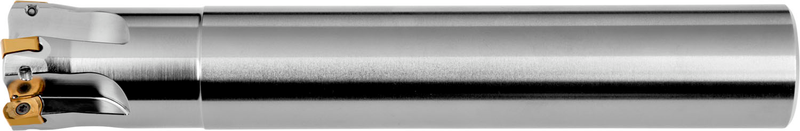

Fraise à avance rapide à géométrie positive/négative qui utilise 4 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 25mm avec un angle d'attaque de 20° et queue cylindrique 25mm selon DIN 1835A, longueur fonctionnelle 50mm et longueur totale 140mm, arrosage centralisé et pas différentiel pour le surfaçage, le fraisage de forme, le fraisage d'épaulement peu profond, l'usinage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 1.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E4R050A25-SBN10-C
Product Number7452546
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

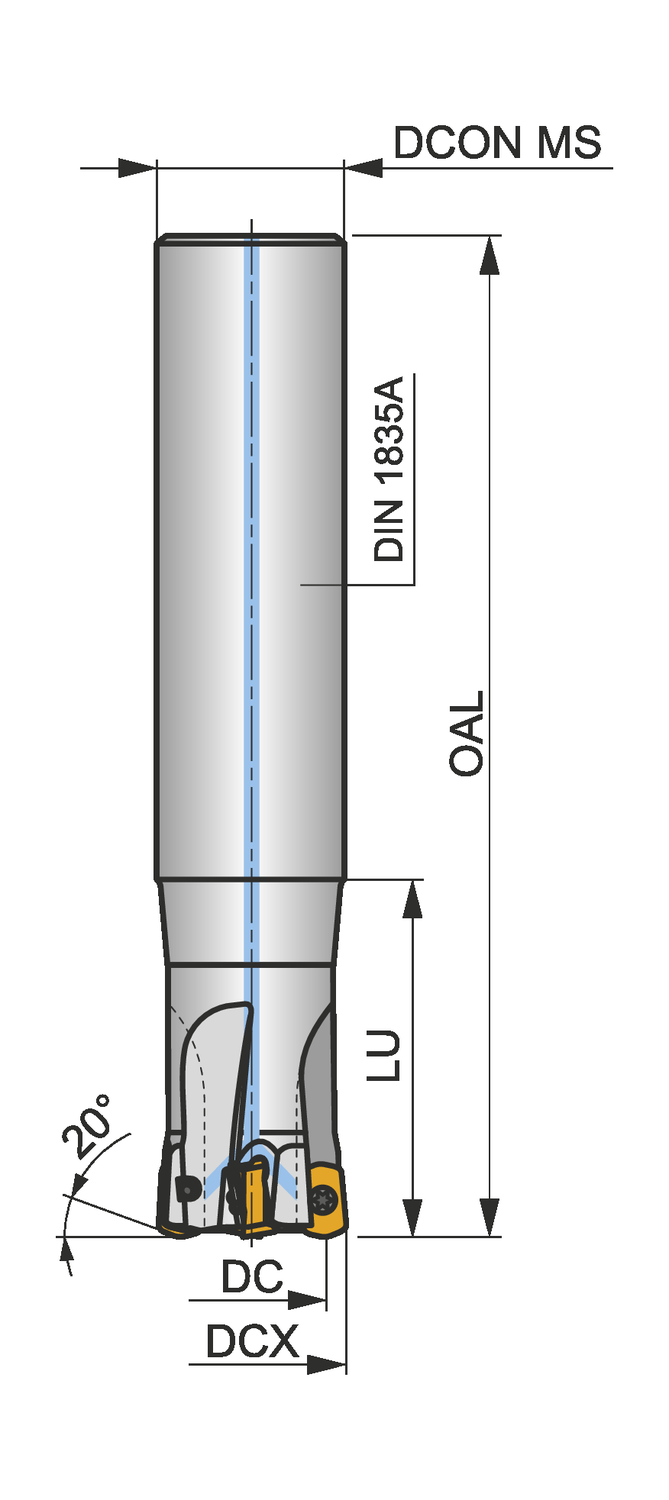

Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452546
EAN3603603388093
File Type Download
25E4R050A25-SBN10-C — 3D Model STP Download
25E4R050A25-SBN10-C — 2D Model DXF Download
25E4R050A25-SBN10-C — Line Drawing PDF Download
