25E4R100A25-SBN10-C
25E4R100A25-SBN10-C
25E4R100A25-SBN10-C

25E4R100A25-SBN10-C

UGC DOR7452547
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$382.00 CAD - $382.00 CAD
$382.00 CAD
$382.00 CAD - $382.00 CAD
$382.00 CAD

Vendu en lots de : 1

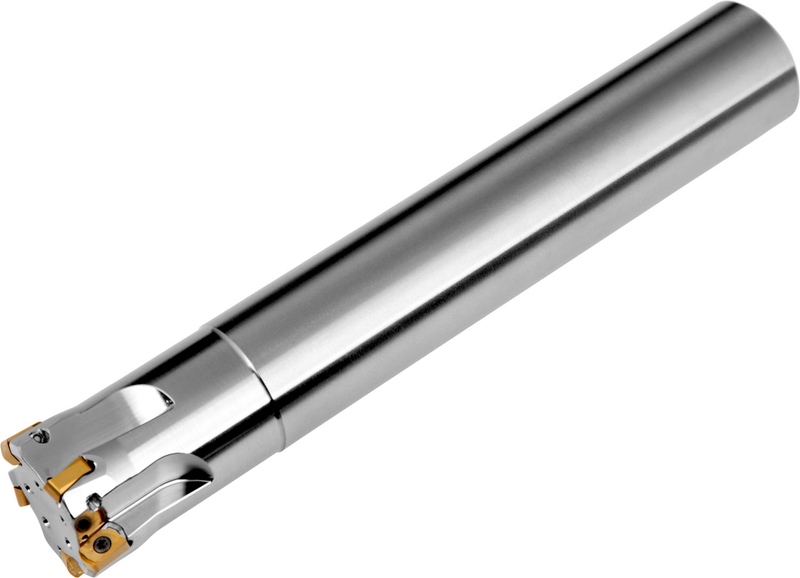

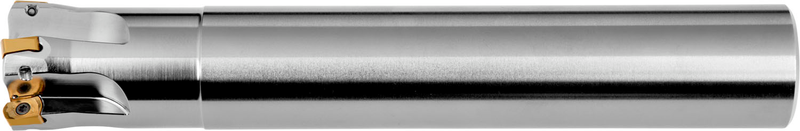

Fraise à avance rapide à géométrie positive/négative qui utilise 4 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 25mm avec un angle d'approche de 20° et queue cylindrique de 25mm selon DIN 1835A, longueur fonctionnelle 100mm et longueur totale 180mm, avec arrosage interne et pas différentiel pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 1.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E4R100A25-SBN10-C
Product Number7452547
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

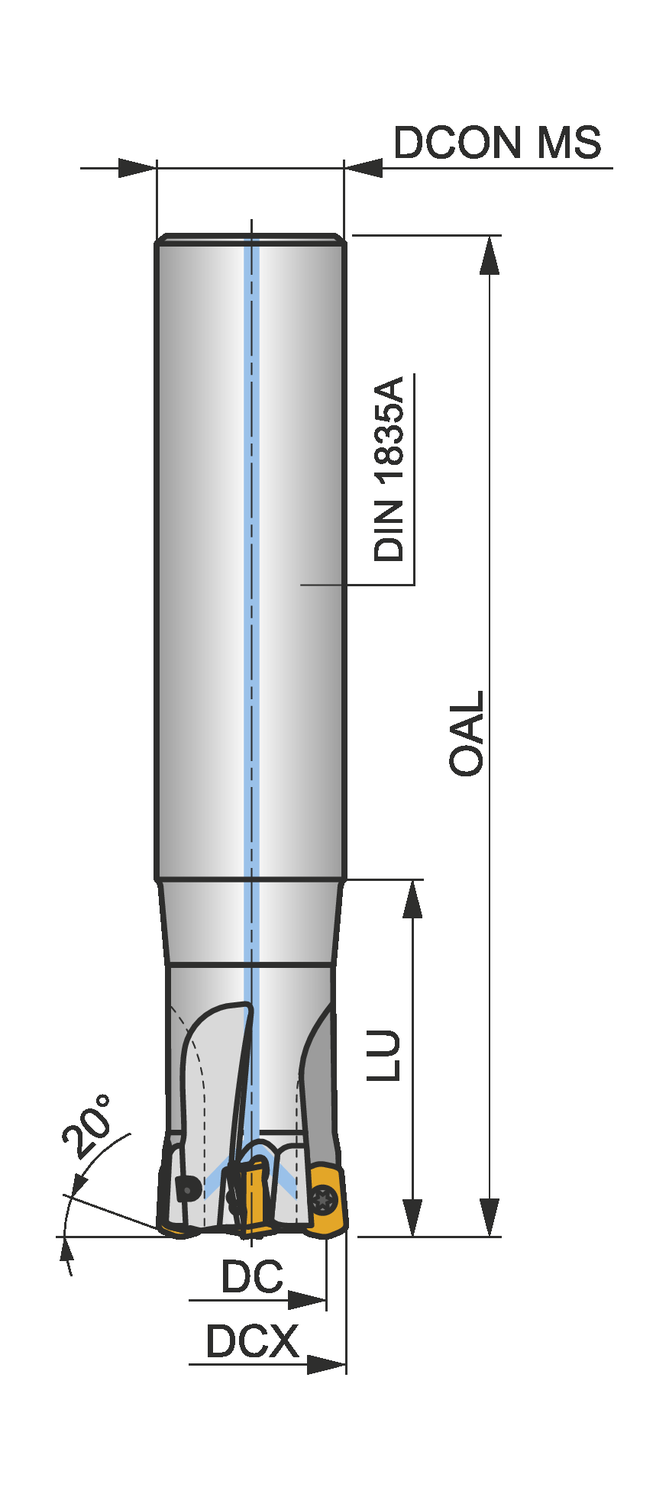

Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)7.087"
Overall Length — mm (OAL)180.0 mm
Usable Length — mm (LU)100.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452547
EAN3603603388109
File Type Download
25E4R100A25-SBN10-C — 3D Model STP Download
25E4R100A25-SBN10-C — 2D Model DXF Download
25E4R100A25-SBN10-C — Line Drawing PDF Download
