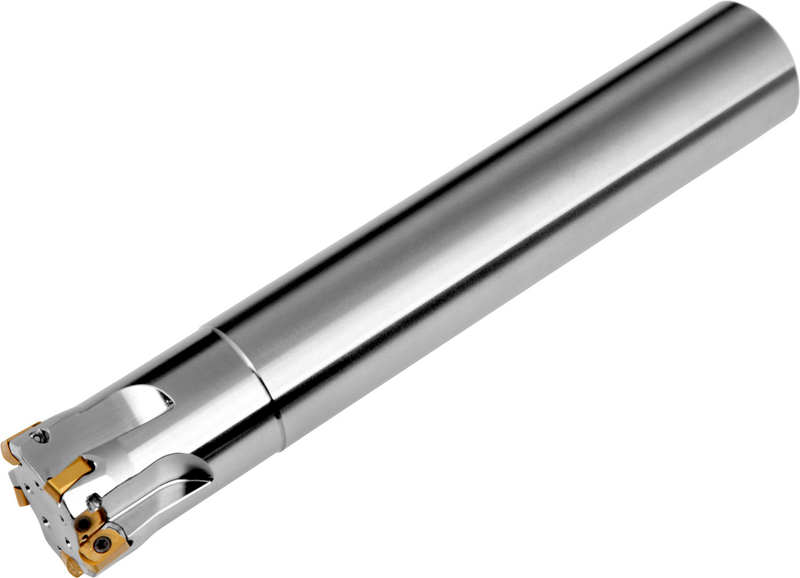

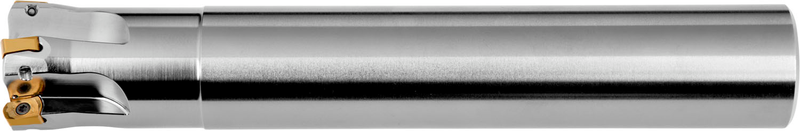

32E6R070A32-SBN10-C
32E6R070A32-SBN10-C
32E6R070A32-SBN10-C

32E6R070A32-SBN10-C

UGC DOR7452549
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.00 CAD - $453.00 CAD
$453.00 CAD
$453.00 CAD - $453.00 CAD
$453.00 CAD

Vendu en lots de : 1

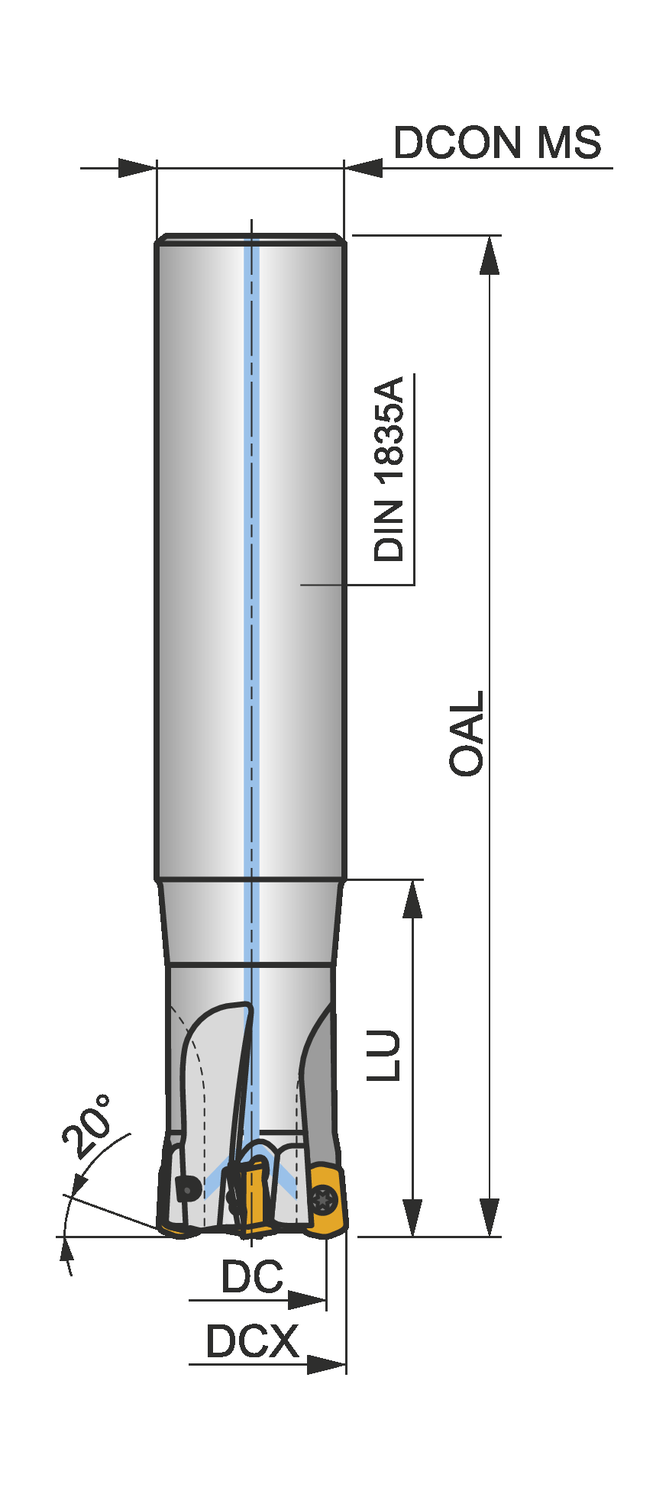

Fraise à avance rapide à géométrie positive/négative utilisant 6 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 32mm avec un angle d'attaque de 20° et une queue cylindrique de 32mm selon DIN 1835A, longueur utile de 70mm et longueur totale de 150mm, arrosage central et pas différentiel pour le surfaçage, la copie, le fraisage d'épaulements peu profonds, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E6R070A32-SBN10-C
Product Number7452549
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452549
EAN3603603388123
File Type Download
32E6R070A32-SBN10-C — 3D Model STP Download
32E6R070A32-SBN10-C — 2D Model DXF Download
32E6R070A32-SBN10-C — Line Drawing PDF Download
