18E2R025M08-SBN10-C
18E2R025M08-SBN10-C
18E2R025M08-SBN10-C

18E2R025M08-SBN10-C

UGC DOR7452553
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$306.00 CAD - $306.00 CAD
$306.00 CAD
$306.00 CAD - $306.00 CAD
$306.00 CAD

Vendu en lots de : 1

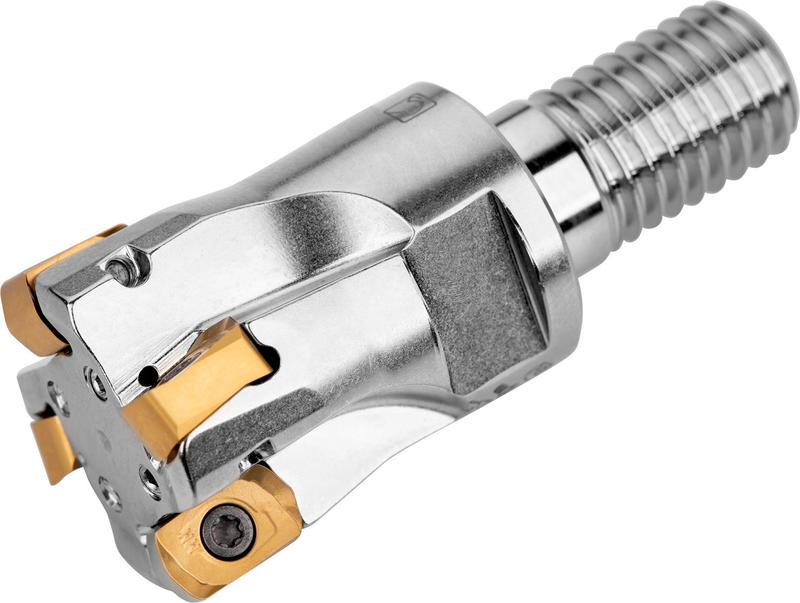

Fraise à avance rapide à géométrie positive/négative qui utilise 2 inserts BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 18mm avec angle d'attaque de 20° et queue filetée M8 pour porte-outils modulaires standards, longueur de dépassement de 25mm, arrosage central pour le surfaçage, le fraisage en plongée, le fraisage d'épaulements peu profonds, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 1,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18E2R025M08-SBN10-C
Product Number7452553
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

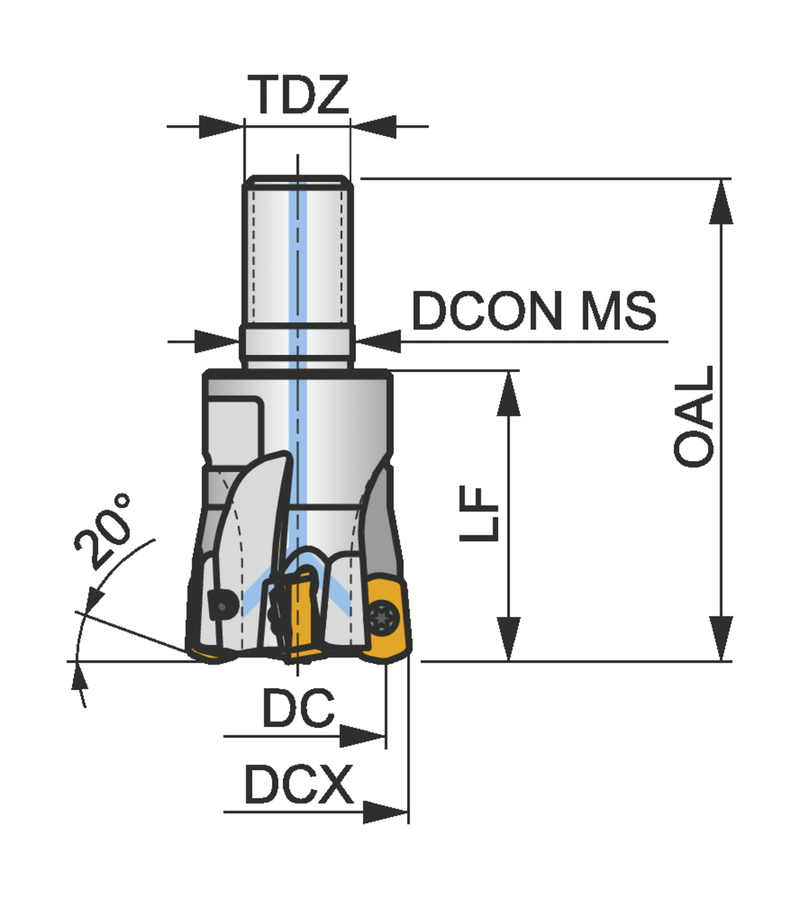

Dimensions
Cutting Diameter — in (DC)0.449"
Cutting Diameter — mm (DC)11.4 mm
Overall Length — in (OAL)1.693"
Overall Length — mm (OAL)43.0 mm
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSBN10
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452553
EAN3603603388161
File Type Download
18E2R025M08-SBN10-C — 3D Model STP Download
18E2R025M08-SBN10-C — 2D Model DXF Download
18E2R025M08-SBN10-C — Line Drawing PDF Download
