28E5R035M12-SBN10-C
28E5R035M12-SBN10-C
28E5R035M12-SBN10-C

28E5R035M12-SBN10-C

UGC DOR7452555
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$378.00 CAD - $378.00 CAD
$378.00 CAD
$378.00 CAD - $378.00 CAD
$378.00 CAD

Vendu en lots de : 1

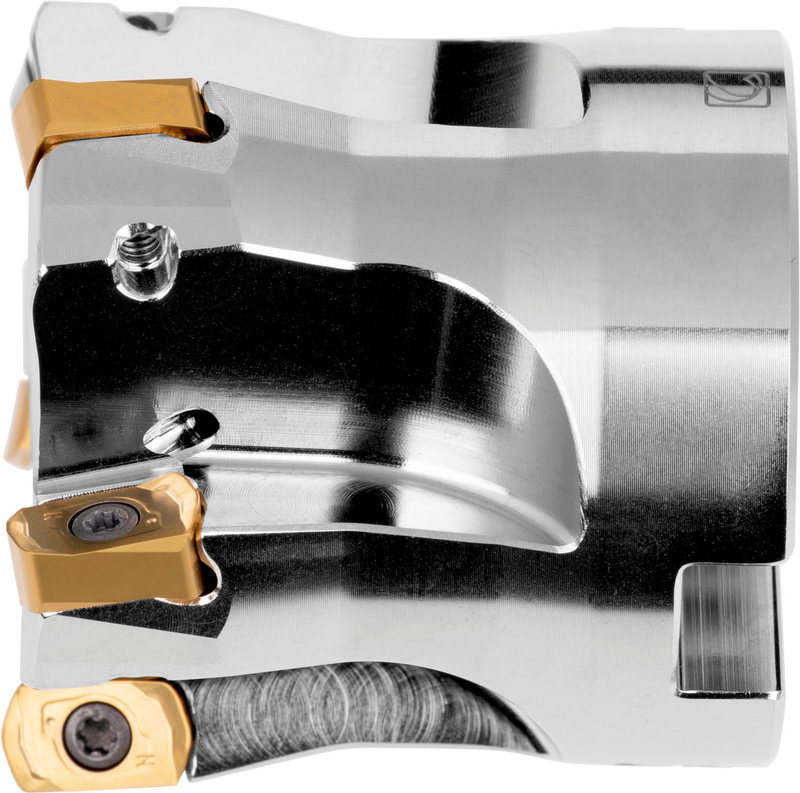

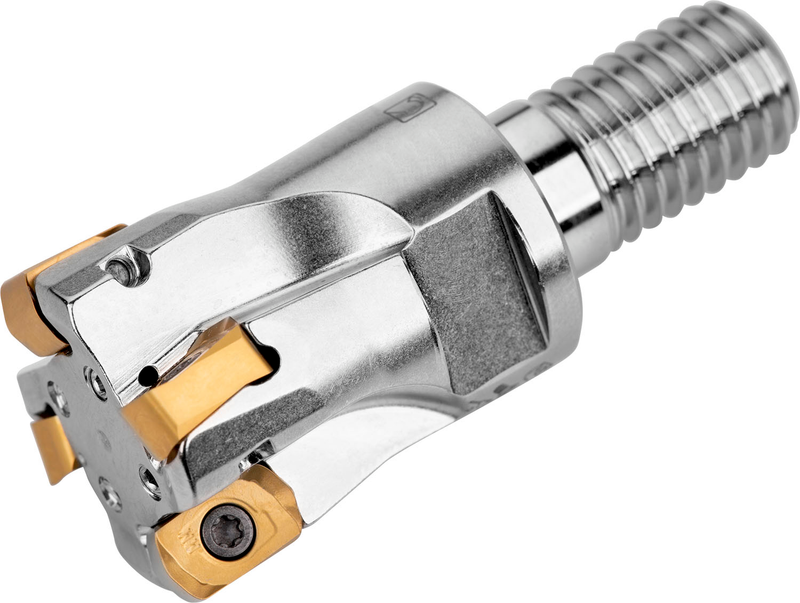

Fraise à avance rapide à géométrie positive/négative utilisant 5 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 28mm avec un angle d'attaque de 20° et une queue filetée M12 pour porte-outils modulaires standards, longueur en porte-à-faux 35mm, arrosage central et pas différentiel pour le surfaçage, la copie, le fraisage d'épaulements peu profonds, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)28E5R035M12-SBN10-C
Product Number7452555
Product FamilySBN10

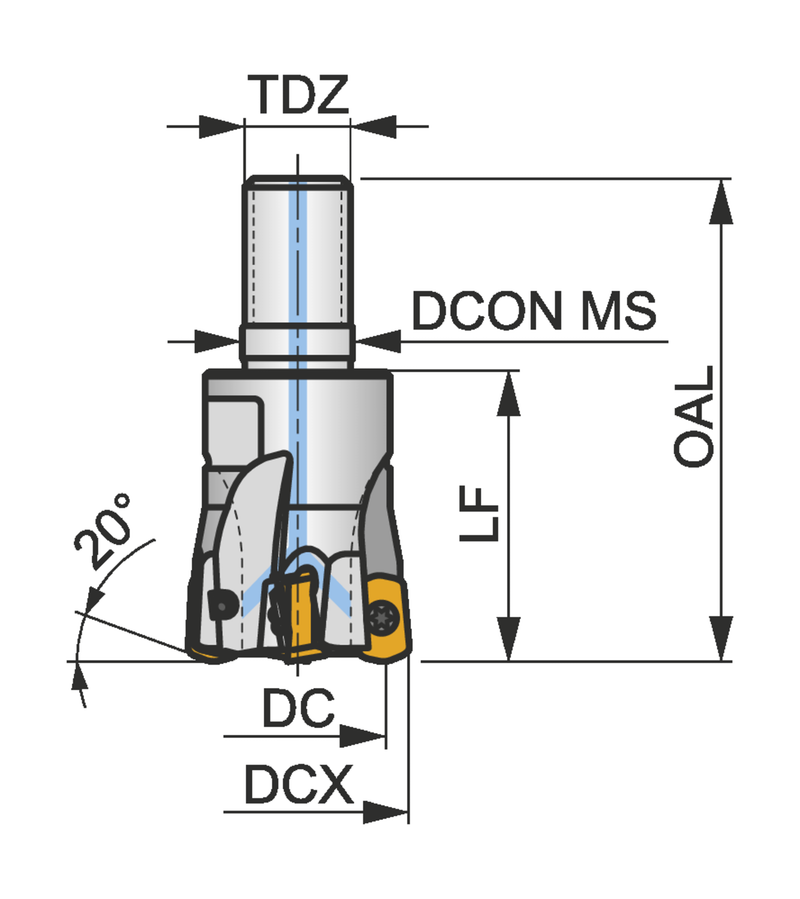

Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.843"
Cutting Diameter — mm (DC)21.4 mm
Overall Length — in (OAL)2.244"
Overall Length — mm (OAL)57.0 mm
Functional Length — mm (LF)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452555
EAN3603603388185
File Type Download
28E5R035M12-SBN10-C — 3D Model STP Download
28E5R035M12-SBN10-C — 2D Model DXF Download
28E5R035M12-SBN10-C — Line Drawing PDF Download
