32E5R040M16-SBN10-C
32E5R040M16-SBN10-C
32E5R040M16-SBN10-C

32E5R040M16-SBN10-C

UGC DOR7452556
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$420.00 CAD - $420.00 CAD
$420.00 CAD
$420.00 CAD - $420.00 CAD
$420.00 CAD

Vendu en lots de : 1

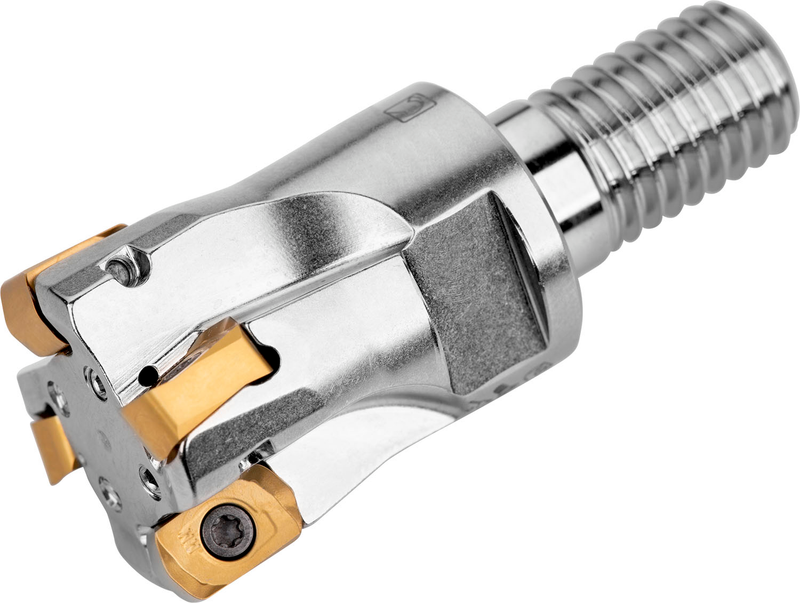

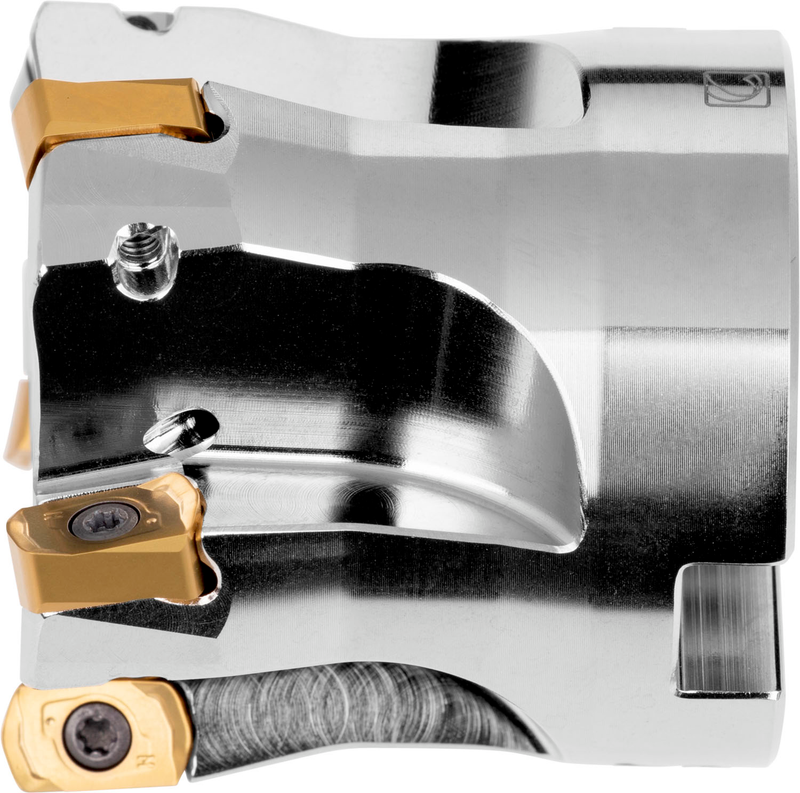

Fraise à avance rapide avec géométrie positive/négative qui utilise 5 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 32mm avec angle d'attaque de 20° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement 40mm, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E5R040M16-SBN10-C
Product Number7452556
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

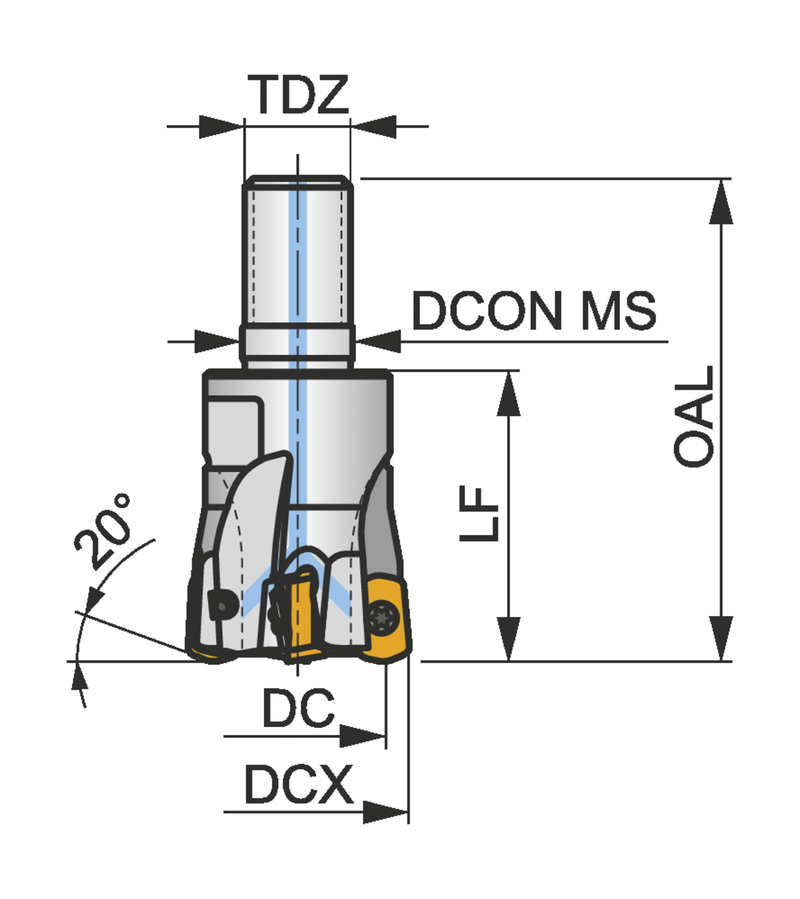

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7452556
EAN3603603388192
File Type Download
32E5R040M16-SBN10-C — 3D Model STP Download
32E5R040M16-SBN10-C — 2D Model DXF Download
32E5R040M16-SBN10-C — Line Drawing PDF Download
