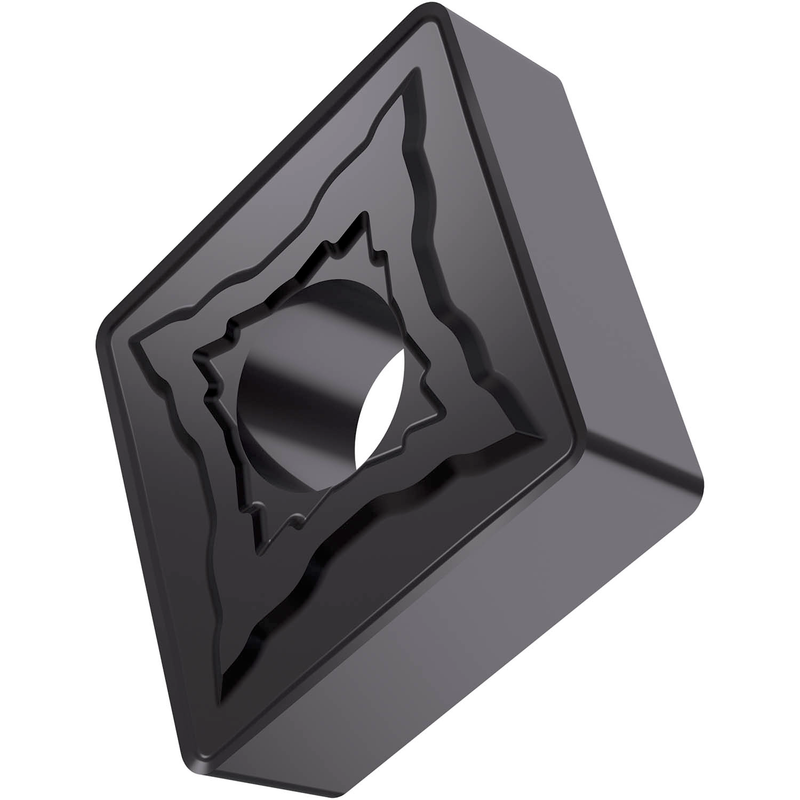

CNMG 433-NMR:T6310
CNMG 433-NMR:T6310

CNMG 433-NMR:T6310

UGC DOR7454462
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les gammes ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables et des super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-NMR:T6310
Product Name (ISO)CNMG 120412E-NMR:T6310
GradeT6310
Chipbreaker (CBMD)RMN
Product Number7454462
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle compris rhomboïde de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.217"
Depth of Cut Max — mm (APMX)5.5 mm
Tool Information
Reference Numbers
EDP Number7454462
EAN3603603392038
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CNMG 433-NMR:T6310 — Line Drawing PDF Download
