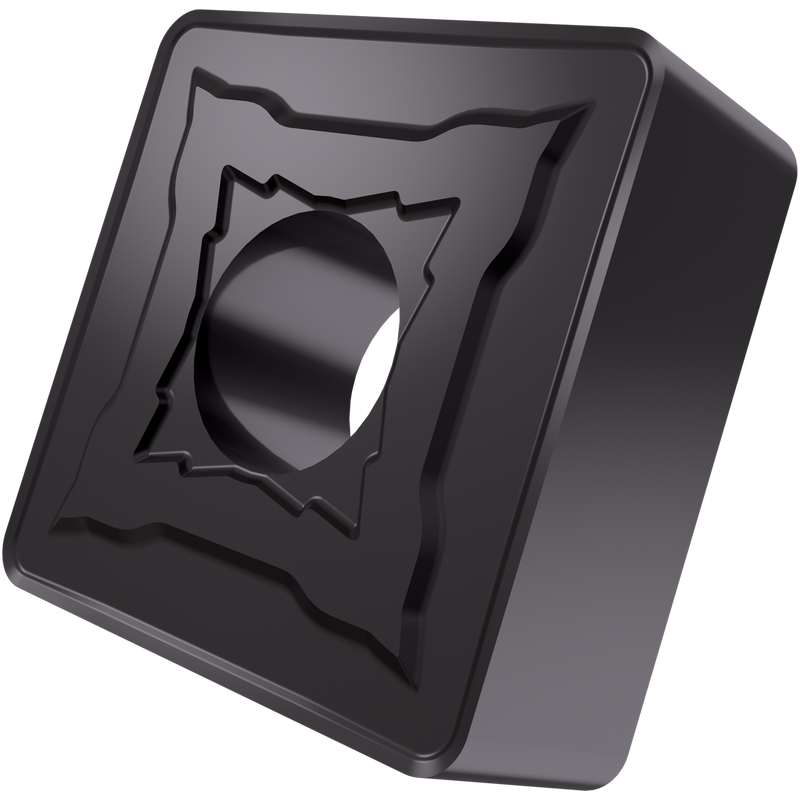

SNMG 543-RMN:T6310
SNMG 543-RMN:T6310

SNMG 543-RMN:T6310

UGC DOR7454467
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

Plaquette double face négative à tourner, carrée avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 543-NMR:T6310
Product Name (ISO)SNMG 150612E-NMR:T6310
GradeT6310
Chipbreaker (CBMD)RMN
Product Number7454467
Product FamilySNMG
Insert Geometry
Insert DesignGMNS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number7454467
EAN3603603392083
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNMG 543-RMN:T6310 — Line Drawing PDF Download
