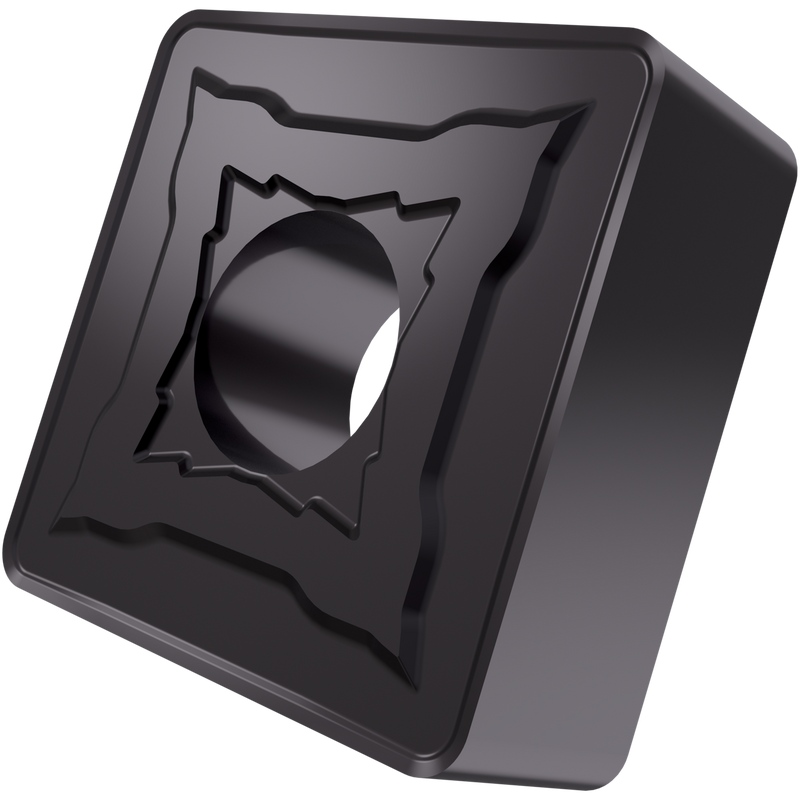

SNMG 643-NMR:T6310
SNMG 643-NMR:T6310

SNMG 643-NMR:T6310

UGC DOR7454468
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.29 CAD - $29.29 CAD
$29.29 CAD
$29.29 CAD - $29.29 CAD
$29.29 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage de finition à l'usinage lourd des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 643-NMR:T6310
Product Name (ISO)SNMG 190612E-NMR:T6310
GradeT6310
Chipbreaker (CBMD)RMN
Product Number7454468
Product FamilyGMNM
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7454468
EAN3603603392090
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNMG 643-NMR:T6310 — Line Drawing PDF Download
