125E5R472C125-ISBN10-C
125E5R472C125-ISBN10-C
125E5R472C125-ISBN10-C

125E5R472C125-ISBN10-C

UGC DOR7455299
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$439.00 CAD - $439.00 CAD
$439.00 CAD
$439.00 CAD - $439.00 CAD
$439.00 CAD

Vendu en lots de : 1

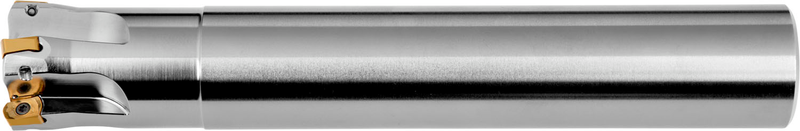

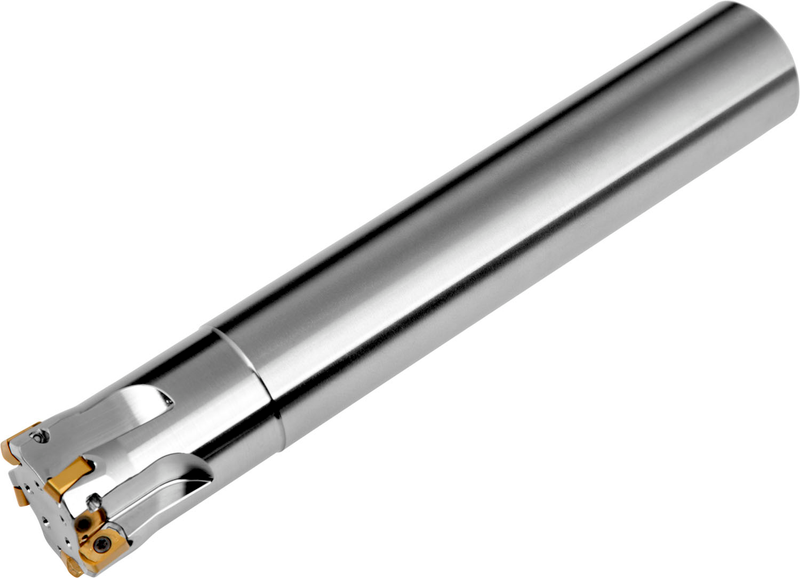

Fraise grande avance à double géométrie négative utilisant 5 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 1,25'' avec angle d'attaque de 20° et queue cylindrique 1,25'' selon DIN 1835A, longueur utile 4,724'' et longueur totale 7,874'', arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage d'épaulement profond, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,039''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E5R472C125-ISBN10-C
Product Number7455299
Product FamilyISBN10

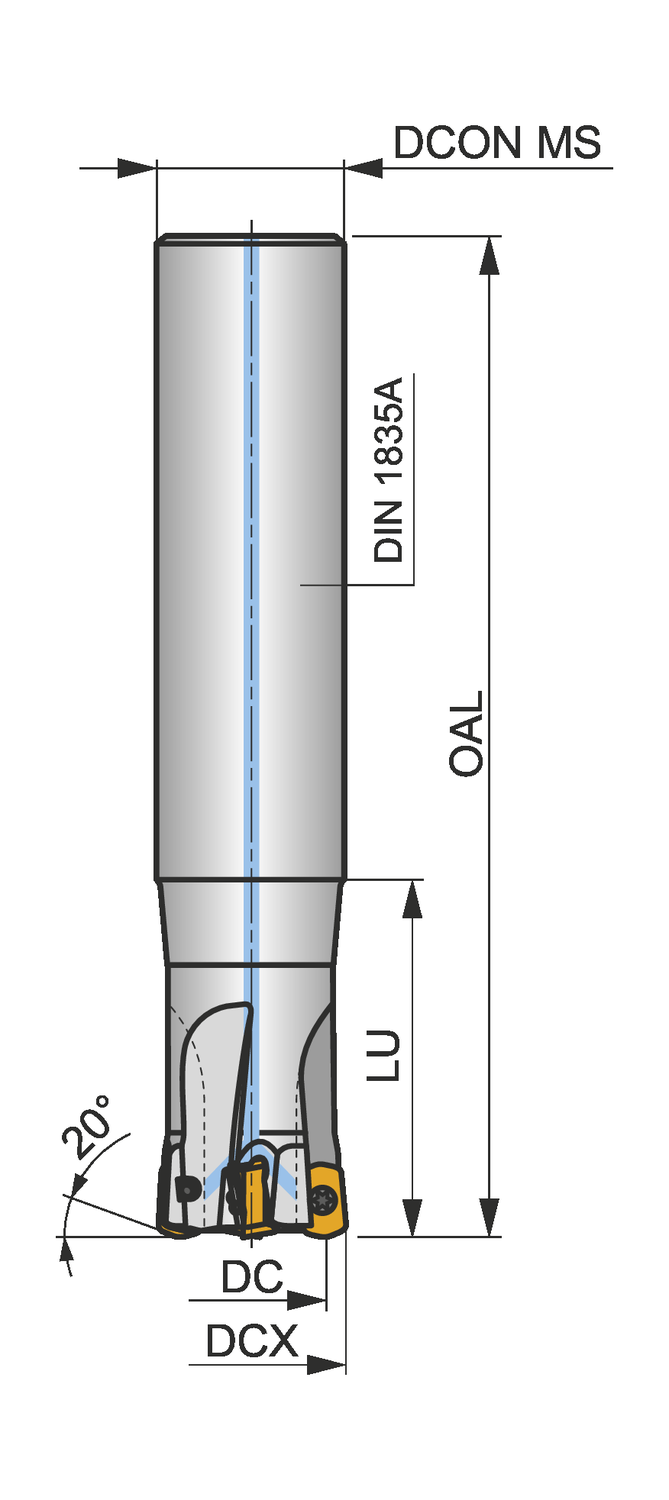

Dimensions
Cutting Diameter — in (DC)0.99"
Cutting Diameter — mm (DC)25.1 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)4.724"
Usable Length — mm (LU)119.99 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455299
EAN3603603388338
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage possible
H — Hardened Materials Usage principal
File Type Download
125E5R472C125-ISBN10-C — 3D Model STP Download
125E5R472C125-ISBN10-C — 2D Model DXF Download
125E5R472C125-ISBN10-C — Line Drawing PDF Download
